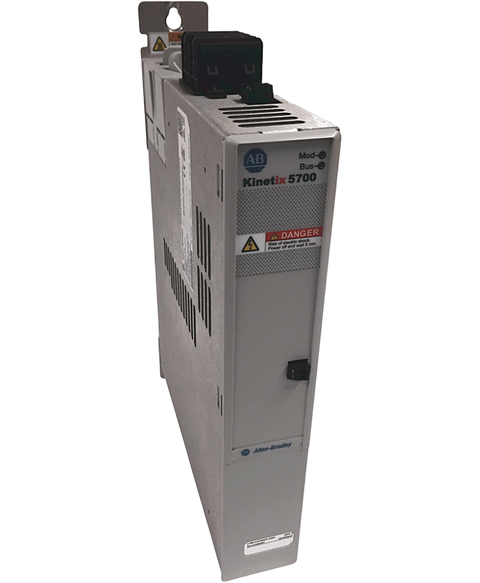

Allen Bradley 2198-CAPMOD-2240
The 2198-CAPMOD-2240 is part of the Kinetix 5700 product family. This is a capacitor module that is used for energy storage and extension of the DC Bus voltage to another inverter cluster and as an additional connection point for an active external shunt module. It may also be used in systems with up to 104 Amperes external DC Bus current or connected in parallel with another accessory module. This module is installed to a Kinetix 5700 power rail and comes with bult-in DC Bus and module status indicator.
This Allen Bradley 2198-CAPMOD-2240 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 5700 range and is referenced internally as PartLogic SKU PL26960796666.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Capacitor Module |
| Product Line | Kinetix 5700 |
| Part Number | 2198-CAPMOD-2240 |
| UPC | 887172705977 |
| Weight | 10.00 lbs (4.54 kg) |
| Voltage Type | DC |
| Product Description | Capacitor module |
| Compatible Devices | Kinetix 5700 Drives |
| Capacitance rating | 2240 ?F |
| Module type | Accessory module |
| Installation | Zero Stacking Tab and Cutout |
| Control input voltage | 24 VDC |
| Voltage range | 276-747 VDC |
| External Active Shunt Modules | Supported |
| Control input current | 50 mA |
| Capacitance | 2240 µF |
| Energy Storage | Supported |
| Connectors | Module status (MS) connector; DC-bus (DC) connector; 24V control input power (CP) connector |
| External DC Bus Current | Less than 104 Amps Alone, up to 208 Amps in Parallel with Itself or Another Accessory Module |
| Average continuous current | 104 Amperes |
| DC-bus status indicator; Module status indicator | Installation |
| LED Status indicators | Module status; DC Bus |
| Design complies with Zero Stacking feature of Kinetix 5700 | Multiple Instances |
| Zero stacking | Supported |
| Supported | Physical Dimensions (HxWxD) |
| 358 mm (14.09 in) x 55 mm (1.08 in) x 253 m (10.0 in) | Mounting hardware |
| M5 (#10-32) steel bolts | Torque |
| Power dissipation | 28 Watts @ 20%; 34 Watts @ 40%; 42 Watts @ 60% 51 Watts @ 80%; 62 watts @ 100% |
| Lifecycle status | Active |
| Brand | Allen Bradley |
