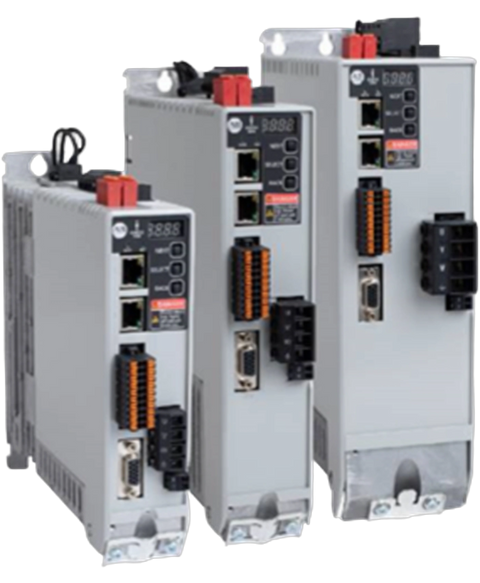

Allen Bradley 2198-C4004-ERS
The 2198-C4004-ERS Servo Drive is a Kinetix 5300 single-axis servo drive manufactured by Allen-Bradley,Rockwell Automation. It comes with an AC input voltage of 342 to 528 Volts RMS, a main AC input current of 1.24 Amps, a continuous power input voltage of 21.6 to 26.4 Volts DC, and a continuous output current of 1.6 Amps.
This Allen Bradley 2198-C4004-ERS is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 5700 range and is referenced internally as PartLogic SKU PL26945100044.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 5300 |
| Part Number | 2198-C4004-ERS |
| Weight | 4.31 lbs (1.96 kg) |
| Product Description | Servo Drive |
| AC Input Voltage | 342-528 Volts RMS |
| AC Input Frequency | 47-63 Hertz |
| Main AC Input Current | 1.24 Amps |
| Peak AC Input Current | 3.59 Amps |
| Control Power Input Voltage | 21.6-26.4 Volts DC |
| Continuous Output Current | 1.6 Amps |
| Continuous Output Power | 0.86 kW |
| Internal Shunt On/Off | 775/765 Volts |
| Internal Shunt Resistor | 100 Ohms |
| Internal Shunt Power | 30 Watts |
| Brand | Allen Bradley |
