Allen Bradley 2198-C1015-ERS

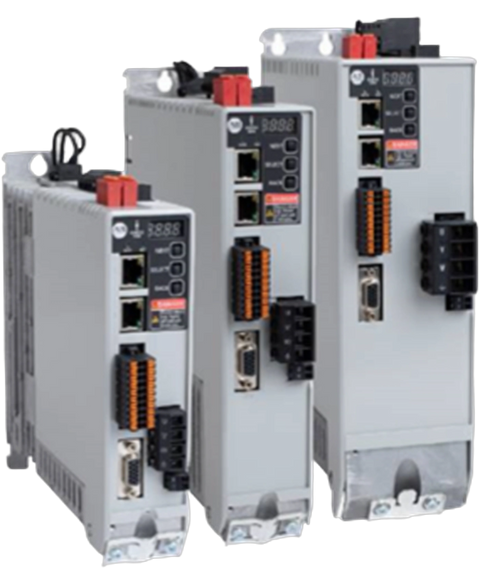

The 2198-C1015-ERS Servo Drive is a Kinetix 5300 digital servo drive from Allen-Bradley,Rockwell Automation. It has 85 to 132 Volts RMS or 170 to 253 Volts RMS of AC input voltage, 6.58 Amps of main AC input current, 21.6 to 26.4 Volts DC of control power input voltage, and 8.5 Amps of continuous output current.
This Allen Bradley 2198-C1015-ERS is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 5700 range and is referenced internally as PartLogic SKU PL26939540766.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 5300 |
| Part Number | 2198-C1015-ERS |
| Weight | 2.00 lbs (0.91 kg) |
| Product Description | Servo Drive |
| AC Input Voltage | 85-132 Volts RMS, 170-253 Volts RMS |
| AC Input Frequency | 47-63 Hertz |
| Main AC Input Current | 6.58 Amps |
| Peak AC Input Current | 19.75 Amps |
| Control Power Input Voltage | 21.6-26.4 Volts DC |
| Continuous Output Current | 8.5 Amps |
| Internal Shunt On/Off | 387.5/377.5 Volts |
| Internal Shunt Resistor | 60 Ohms |
| Internal Shunt Power | 50 Watts |
| Brand | Allen Bradley |
