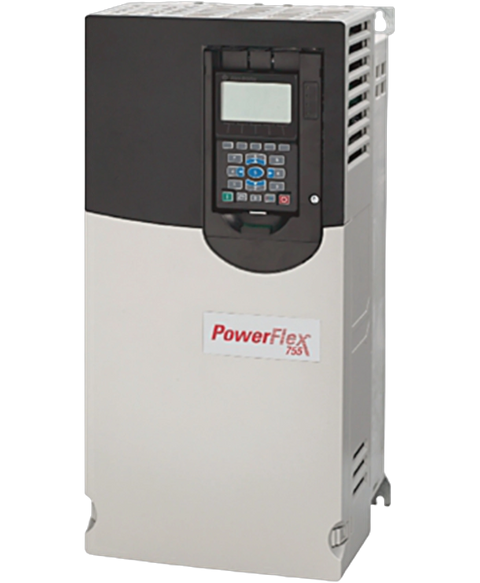

Allen Bradley 20G1AND415JA0NNNNN
The 20G1AND415JA0NNNNN from Allen Bradley is a robust AC drive within the PowerFlex 755 range. It operates on AC input with precharge capabilities, rated at 480 VAC and 650 VDC, and is able to deliver a maximum current of 415 A. With an output of 350 HP, or 260 kW, this drive is designed for substantial industrial applications.
This Allen Bradley 20G1AND415JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26970218006.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND415JA0NNNNN |
| Weight | 290.00 lbs (131.54 kg) |
| Power Input Mode | AC Input with Precharge and no DC terminals |
| Casing Specification | IP00 / IP20 / NEMA Open / NEMA 1 |
| Voltage Limit | 480 VAC / 650 VDC |
| Frequency Capacity | 50/60 Hz |
| ND Current Requirement | 415 A |
| Usable Power (HP) | 350 HP |
| Usable Power (kW) | 260 kW |
| Frame Format | 7 |
| Filter Function | Yes |
| CM Cap Initial Configuration | Jumper Installed |
| Dynamic Braking Control | Internal Transistor |
| HIM Door Package | None |
| Operating Temperature Specification | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature Specification | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
