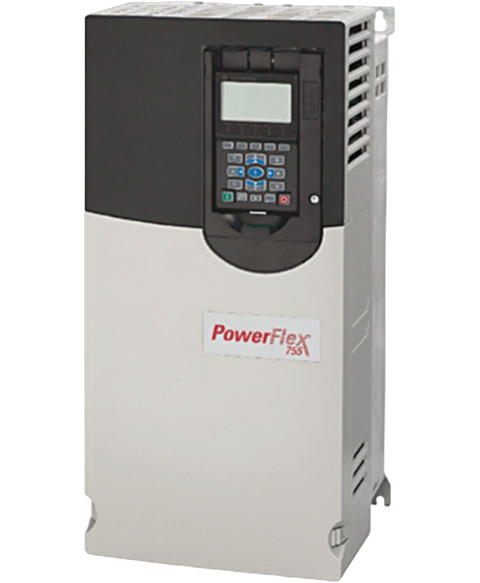

Allen Bradley 20G1AND361JA0NNNNN
The 20G1AND361JA0NNNNN model from Allen Bradley's PowerFlex 755 series is an advanced AC drive with a robust design. Capable of handling significant power, it operates at an effective output of 300 HP and utilizes a voltage category of 480 VAC or 650 VDC, ensuring versatility in various applications.
This Allen Bradley 20G1AND361JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26952200278.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND361JA0NNNNN |
| UPC | 889508554792 |
| Weight | 150.00 lbs (68.04 kg) |
| Electrical Input | AC Input with Precharge and no DC terminals |
| Housing Specification | IP00 / IP20 / NEMA Open / NEMA 1 |
| Voltage Category | 480 VAC / 650 VDC |
| AC Frequency | 50/60 Hz |
| ND Current Range | 361 A |
| Effective Power (HP) | 300 HP |
| Effective Power (kW) | 224 kW |
| Frame Model | 7 |
| Filter Requirement | Yes |
| CM Cap Standard Setting | Jumper Installed |
| Dynamic Braking Design | Internal Transistor |
| HIM Door Setup | None |
| Temperature Operating Range | 0 to 50 °C (32 to 122 °F) |
| Temperature Storage Range | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
