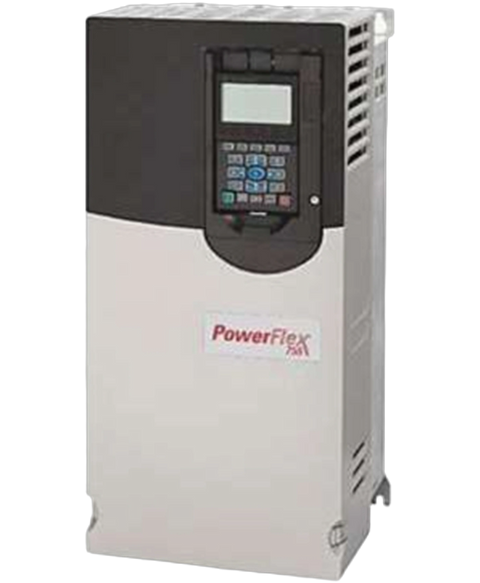

Allen Bradley 20G1AND248JN0NNNNN
This model, the 20G1AND248JN0NNNNN, is part of Allen Bradley's PowerFlex 755 series and functions as an AC drive. Constructed for robust industrial use, it operates on a 480 VAC or 650 VDC supply and manages a continuous load power output of 200 HP or 150 kW. The drive has a current capacity of 248 A and allows AC input with a precharge setup without DC terminals.
This Allen Bradley 20G1AND248JN0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26902878106.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND248JN0NNNNN |
| UPC | 889508554761 |
| Weight | 200.00 lbs (90.72 kg) |
| Input Supply | AC Input with Precharge and no DC terminals |
| Cabinet Category | IP00 / IP20 / NEMA Open / NEMA 1 |
| Voltage Class | 480 VAC / 650 VDC |
| Frequency Specification | 50/60 Hz |
| ND Current Capacity | 248 A |
| Load Power (HP) | 200 HP |
| Load Power (kW) | 150 kW |
| Frame Code | 7 |
| Filter Configuration | Yes |
| CM Cap Basic Configuration | Jumper Installed |
| Dynamic Braking Setting | None |
| HIM Door Adapter | None |
| System Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| System Storage Temperature | -40 to 70 °C (−40 to 158 °F) |
| Brand | Allen Bradley |
