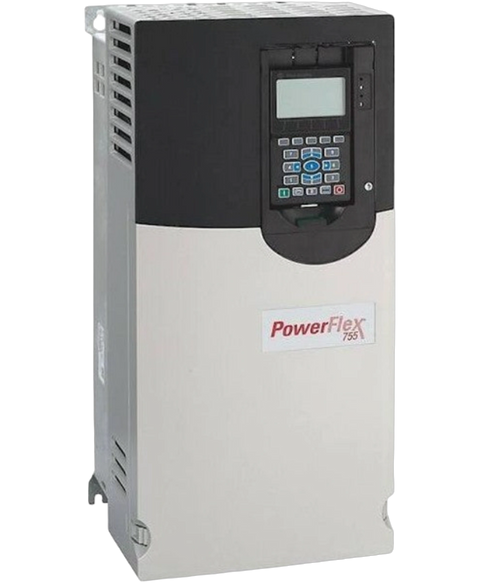

Allen Bradley 20G1AND248JA0NNNNN
The 20G1AND248JA0NNNNN model serves as an AC drive within Allen Bradley's PowerFlex 755 range. It is designed for robust performance, accepting an input voltage of 480 VAC or 650 VDC and supplying up to 200 HP, with a full load current of 248 A. This drive operates effectively under a frequency of 50,60 Hz and incorporates dynamic braking using an internal transistor.
This Allen Bradley 20G1AND248JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26902875232.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND248JA0NNNNN |
| UPC | 889508554686 |
| Weight | 200.00 lbs (90.72 kg) |
| Power Mode | AC Input with Precharge and no DC terminals |
| Housing Category | IP00 / IP20 / NEMA Open / NEMA 1 |
| Voltage Specification | 480 VAC / 650 VDC |
| Frequency Rating | 50/60 Hz |
| ND Full Load Current | 248 A |
| Drive Power (HP) | 200 HP |
| Drive Power (kW) | 150 kW |
| Frame Class | 7 |
| Filter System | Yes |
| CM Cap Factory Default | Jumper Installed |
| Dynamic Braking Configuration | Internal Transistor |
| HIM Door Bracket | None |
| Design Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Design Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
