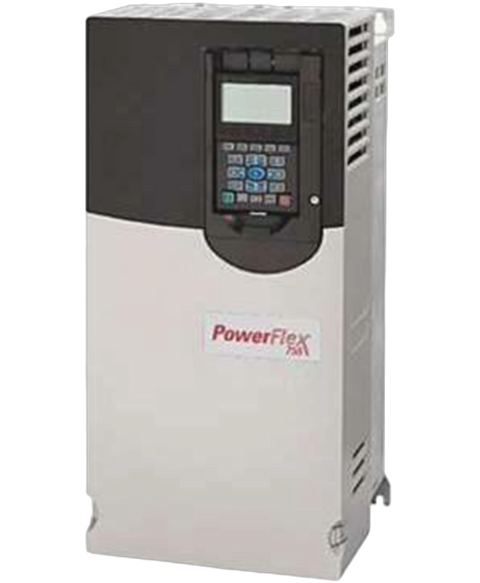

Allen Bradley 20G1AND186JA0NNNNN
The 20G1AND186JA0NNNNN is an AC drive from Allen Bradley's PowerFlex 755 line, engineered for reliable performance in industrial applications. Featuring a voltage range of 480 VAC and 650 VDC, this drive supports a robust output of 150 HP or 112 kW.
This Allen Bradley 20G1AND186JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26895925833.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND186JA0NNNNN |
| UPC | 889508554679 |
| Weight | 150.00 lbs (68.04 kg) |
| Current Type | AC Input with Precharge and no DC terminals |
| Casing Rating | IP00 / IP20 / NEMA Open / NEMA 1 |
| Voltage Range | 480 VAC / 650 VDC |
| Output Frequency | 50/60 Hz |
| ND Output Current | 186 A |
| Continuous Power (HP) | 150 HP |
| Continuous Power (kW) | 112 kW |
| Frame Specification | 6 |
| Filter Method | Yes |
| CM Cap Default Arrangement | Jumper Installed |
| Dynamic Braking Capability | Internal Transistor |
| HIM Door Assembly | None |
| Minimum Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Minimum Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
