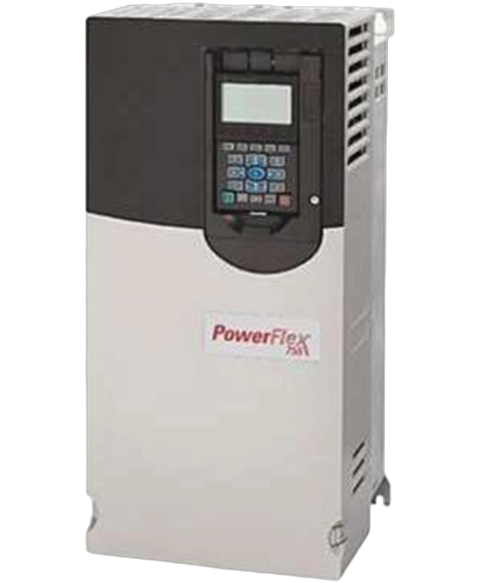

Allen Bradley 20G1AND156JA0NNNNN
The Allen Bradley 20G1AND156JA0NNNNN is an AC drive with significant industrial capabilities. It operates with an input voltage of up to 480 VAC and 650 VDC, and can support up to 125 horsepower and 93 kilowatts.
This Allen Bradley 20G1AND156JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26897840401.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND156JA0NNNNN |
| Weight | 200.00 lbs (90.72 kg) |
| Voltage Type | AC Input with Precharge and no DC terminals |
| Housing Rating | IP00 / IP20 / NEMA Open / NEMA 1 |
| Output Voltage | 480 VAC / 650 VDC |
| Supply Frequency | 50/60 Hz |
| ND Maximum Current | 156 A |
| Working Power (HP) | 125 HP |
| Working Power (kW) | 93 kW |
| Nominal Frame Size | 6 |
| Filter Class | Yes |
| CM Cap Initial Setup | Jumper Installed |
| Dynamic Braking Module | Internal Transistor |
| HIM Door Unit | None |
| Permissible Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Permissible Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
