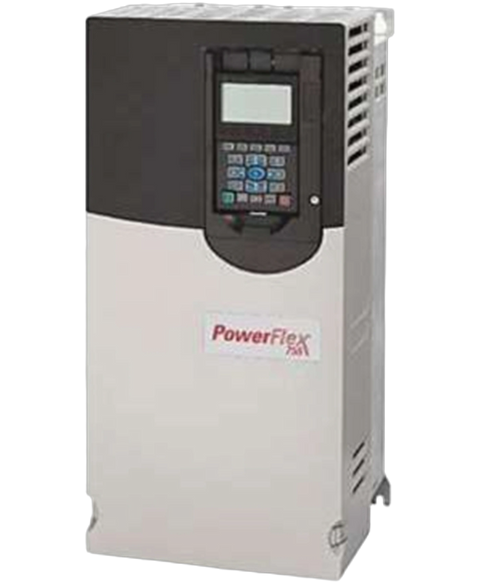

Allen Bradley 20G1AND125JA0NNNNN
The 20G1AND125JA0NNNNN model, part of the Allen Bradley PowerFlex 755 series, is designed as an AC drive for advanced industrial applications. This unit operates from an AC input with precharge and does not have any DC terminals, thereby streamlining installation requirements.
This Allen Bradley 20G1AND125JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26892061493.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G1AND125JA0NNNNN |
| Weight | 125.00 lbs (56.70 kg) |
| Input Source | AC Input with Precharge and no DC terminals |
| Casing Type | IP00 / IP20 / NEMA Open / NEMA 1 |
| Nominal Voltage | 480 VAC / 650 VDC |
| Rated Frequency | 50/60 Hz |
| ND Operating Current | 125 A |
| Operating Power (HP) | 100 HP |
| Operating Power (kW) | 75 kW |
| Standard Frame Size | 6 |
| Filter Rating | Yes |
| CM Cap Factory Setting | Jumper Installed |
| Dynamic Braking Feature | Internal Transistor |
| HIM Door Kit | None |
| Allowable Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Allowable Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
