Allen Bradley 20G11ND3P4JA0NNNNN

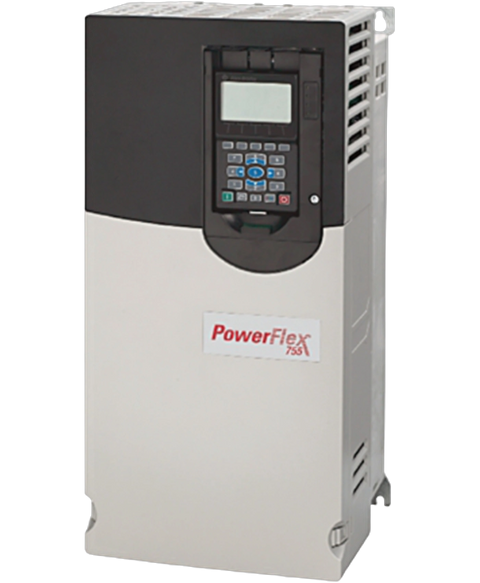

The 20G11ND3P4JA0NNNNN AC drive from Allen Bradley, part of the PowerFlex 755 series, operates at a rated voltage of 480 V AC or 650 V DC. This three-phase drive has a rated frequency of 60 Hz and accommodates a maximum current of 3.4 A, providing 2 hp for both normal and heavy-duty applications.
This Allen Bradley 20G11ND3P4JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26893684913.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G11ND3P4JA0NNNNN |
| UPC | 889508555270 |
| Weight | 5.00 lbs (2.27 kg) |
| Rated Voltage | 480V AC / 650V DC |
| Number of Phases | 3-Phase |
| Rated Current | 3.4 A |
| Normal Duty Horsepower | 2 hp |
| Heavy Duty Horsepower | 2 hp |
| Rated Frequency | 60 Hz |
| Input Type | AC Input with Precharge and DC Terminals |
| Protection Category | IP20 |
| Frame Size | Frame 2 |
| Minimum Temperature | 0°C |
| Maximum Temperature | 40°C |
| Maximum Operating Humidity | 80% (non-condensing) |
| Installation Altitude | 1000 MSL |
| Brand | Allen Bradley |
