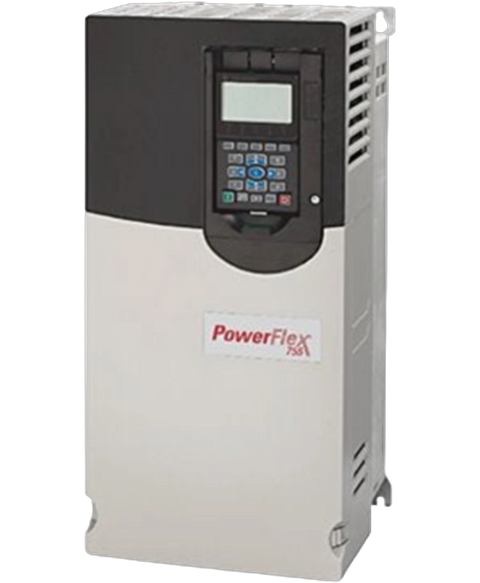

Allen Bradley 20G11ND096AA0NNNNN
The 20G11ND096AA0NNNNN AC drive from Allen Bradley's PowerFlex 755 series is designed for versatile operation. It features an AC input with a precharge functionality and supports both AC and DC terminals. Rated for 480 VAC or 650 VDC, this drive handles a normal-duty current rating of 96 A, providing up to 75 HP (56 kW) of power.
This Allen Bradley 20G11ND096AA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26980377670.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G11ND096AA0NNNNN |
| UPC | 884951037953 |
| Weight | 85.00 lbs (38.56 kg) |
| Input Type | AC Input with Precharge (includes DC terminals) |
| Enclosure | IP00 / IP20 / NEMA Open / NEMA 1 |
| Voltage Rating | 480 VAC / 650 VDC |
| Line Frequency | 50/60 Hz |
| ND Current Rating | 96 A |
| Power Output (HP) | 75 HP |
| Power Output (kW) | 56 kW |
| Frame Size | 6 |
| Filtering | Yes |
| Default CM Cap Configuration | Jumper Removed |
| Dynamic Braking | Internal Transistor |
| Door Mounted HIM | None |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
