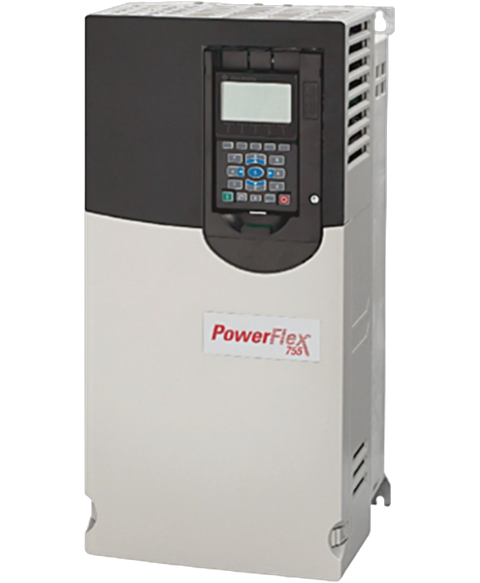

Allen Bradley 20G11ND014JA0NNNNN
The 20G11ND014JA0NNNNN is an AC drive from the Allen Bradley PowerFlex 755 series. It operates at a rated voltage of 480V AC or 650V DC, suitable for 3-phase applications. With a rated current of 14.0 A, it supports a normal duty horsepower of 10 hp and heavy-duty applications at 7.5 hp.
This Allen Bradley 20G11ND014JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26940866051.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G11ND014JA0NNNNN |
| UPC | 889508555317 |
| Weight | 20.00 lbs (9.07 kg) |
| Rated Voltage | 480V AC / 650V DC |
| Number of Phases | 3-Phase |
| Rated Current | 14.0 A |
| Normal Duty Horsepower | 10 hp |
| Heavy Duty Horsepower | 7.5 hp |
| Rated Frequency | 60 Hz |
| Input Type | AC Input with Precharge and DC Terminals |
| Protection Category | IP20 |
| Frame Size | Frame 2 |
| Minimum Temperature | 0°C |
| Maximum Temperature | 40°C |
| Maximum Operating Humidity | 80% (non-condensing) |
| Installation Altitude | 1000 MSL |
| Brand | Allen Bradley |
