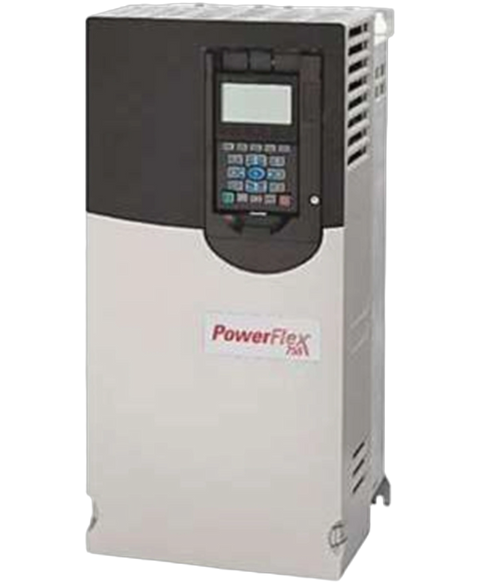

Allen Bradley 20G11FD065JA0NNNNN
The 20G11FD065JA0NNNNN model is an AC drive from the PowerFlex 755 series by Allen Bradley. Operating on an input voltage of 480 VAC and 650 VDC, it harnesses a power output of 50 HP (37 kW) and supports a normal duty current rating of 65 A. With a robust design, this drive is suitable for demanding applications.
This Allen Bradley 20G11FD065JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 755 range and is referenced internally as PartLogic SKU PL26894164572.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 755 |
| Part Number | 20G11FD065JA0NNNNN |
| Weight | 70.00 lbs (31.75 kg) |
| Input Type | AC Input with Precharge (includes DC terminals) |
| Enclosure | Flange, NEMA 4X/12 |
| Voltage Rating | 480 VAC / 650 VDC |
| Line Frequency | 50/60 Hz |
| Normal Duty Current Rating | 65 A |
| Power Output | 50 HP / 37 kW |
| Frame Size | 5 |
| Filtering | Yes |
| Default Common Mode Capacitor Configuration | Jumper Installed |
| Dynamic Braking | Internal Transistor |
| Door Mounted Human Interface Module | None |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Brand | Allen Bradley |
