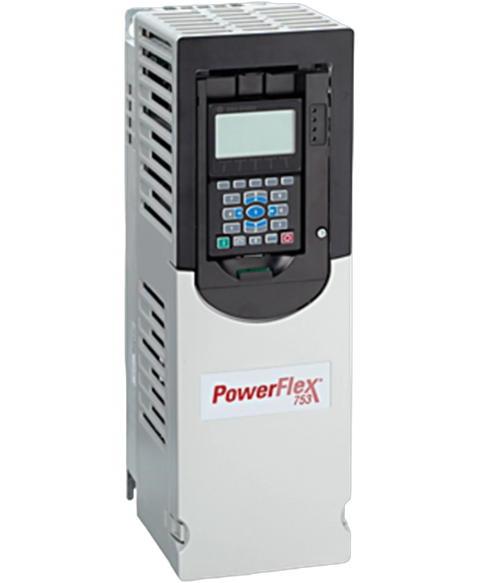

Allen Bradley 20F1AND248AN0NNNNN
The 20F1AND248AN0NNNNN from the PowerFlex 753 series is a variable frequency drive designed for sophisticated motor control. It operates on a 3-phase AC input system with a pre-charge feature and is capable of handling up to 248 A of continuous output current, supporting applications with rated powers of up to 200 HP in normal duty and 150 HP in heavy duty.
This Allen Bradley 20F1AND248AN0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26966595036.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Brand | Allen Bradley |
| Series / Product line | PowerFlex 753 |
| Model / Part number | 20F1AND248AN0NNNNN |
| Drive type | AC variable frequency drive |
| Cooling & enclosure | Air cooled, IP20/IP00 open |
| Input arrangement | 3-phase AC with pre-charge |
| Nominal input / DC bus | 480 VAC / ~650 VDC |
| Output phases & frequency | 3-phase, 50–60 Hz |
| Output voltage range | 380–480 VAC |
| Continuous output current | 248 A |
| Rated output power | 200 HP Normal Duty / 150 HP Heavy Duty |
| Control modes | V/Hz, SVC, FORCE vector |
| Built-in I/O | Standard embedded I/O |
| Local operator interface | No HIM fitted |
| Braking hardware | None |
| Network options | Dual-port EtherNet/IP optional module |
| Safety functions | STO, Safe Speed, up to PLe/SIL3 |
| EMC / filtering | Filtered, CM jumper out |
| UPC | 884951163706 |
