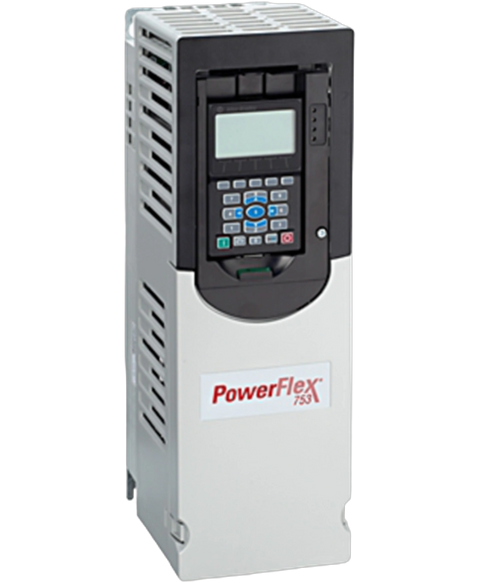

Allen Bradley 20F1AND186JN0NNNNN
The Allen Bradley 20F1AND186JN0NNNNN is an AC drive designed to manage diverse motor control applications. Functioning with a rated voltage of 480V AC or 650V DC, this model supports a 3-phase system. It offers a normal duty horsepower of 150 hp and an output current of 186 A, while also operating at a maximum of 125 hp and 156 A for heavy-duty tasks.
This Allen Bradley 20F1AND186JN0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26897774677.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Drive |
| Product Line | PowerFlex 753 |
| Part Number | 20F1AND186JN0NNNNN |
| UPC | 889508554716 |
| Weight | 115.00 lbs (52.16 kg) |
| Rated Voltage | 480V AC / 650V DC |
| Number Of Phase | 3-Phase |
| Rated Frequency | 60 Hz |
| Normal Duty Horsepower | 150 hp |
| Normal Duty Output Amp | 186 A |
| Heavy Duty Horsepower | 125 hp |
| Heavy Duty Output Amp | 156 A |
| Protection Category | IP00 |
| Frame Size | Frame 6 |
| Temperature Range | 0 to 40°C |
| Max. Storage Humidity | 80% (non-condensing) |
| Max. Operating Humidity | 80% (non-condensing) |
| Max. Operating Altitude | 1000 meters above sea level |
| Brand | Allen Bradley |
