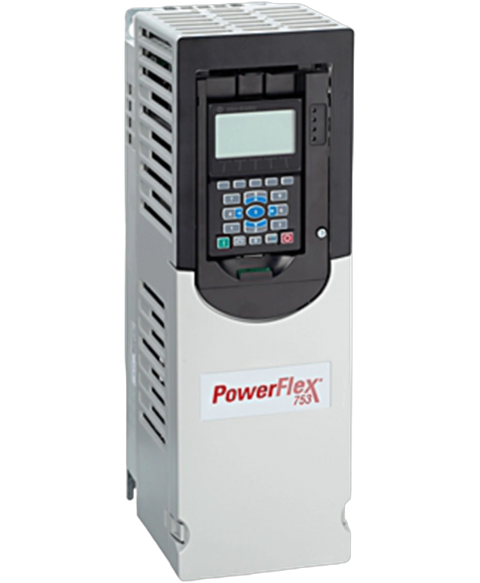

Allen Bradley 20F11NC104JA0NNNNN
The 20F11NC104JA0NNNNN from the PowerFlex 753 series by Allen Bradley is a variable frequency AC drive. Rated for a maximum current of 104 Amps, it operates efficiently under a voltage class of 400V AC,540V DC with a three-phase input configuration.
This Allen Bradley 20F11NC104JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26931521097.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Variable Frequency AC Drive |
| Product Line | PowerFlex 753 |
| Part Number | 20F11NC104JA0NNNNN |
| UPC | 884951166424 |
| Weight | 125.00 lbs (56.70 kg) |
| Human Interface Module (HIM) | Not included (plastic cover installed) |
| Rated Current | 104 Amps |
| Voltage Class | 400V AC / 540V DC |
| Phase | 3-phase input |
| Frame Size | Frame 5 |
| Power Rating | Normal Duty: 55 kW |
| Enclosure Type | IP20/IP00, NEMA/UL Type Open |
| Cooling Method | Air-cooled |
| Embedded I/O | Included |
| Option Slots | 3 available (feedback, safety, communication) |
| Dynamic Braking Transistor | Yes (Included) |
| Default CM Cap Connection | Jumper Installed |
| Brand | Allen Bradley |
