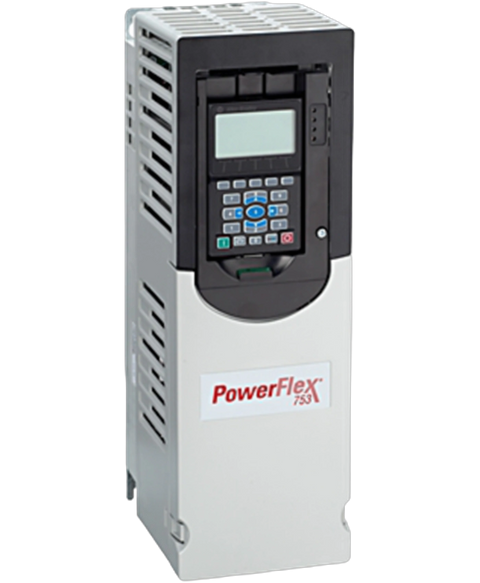

Allen Bradley 20F11NC015JA0NNNNN
The 20F11NC015JA0NNNNN from Allen Bradley is a variable frequency AC drive designed for flexibility in operation. It can manage a 3-phase input with a rated current of 15.4 Amps and operates within a voltage range of 400 VAC and 540 VDC.
This Allen Bradley 20F11NC015JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26980281187.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Variable Frequency AC Drive |
| Product Line | PowerFlex 753 |
| Part Number | 20F11NC015JA0NNNNN |
| UPC | 884951161511 |
| Weight | 20.00 lbs (9.07 kg) |
| Frame Size | Frame 2 |
| Phase | 3-phase input |
| Rated Current | 15.4 Amps |
| Voltage Class | 400 VAC / 540 VDC |
| Human Interface Module (HIM) | Not included; blank cover installed |
| Mounting Orientation | Vertical panel mount |
| Filtering | Yes (EMC filtering enabled) |
| CM Jumper | Installed |
| Power Rating (Normal Duty) | 7.5 kW |
| Dynamic Braking Transistor | Yes |
| Enclosure Type | IP20/IP00, NEMA/UL Type Open |
| Cooling Method | Air-cooled |
| Embedded I/O | Included |
| Option Slots | 3 available (feedback, safety, communication) |
| Brand | Allen Bradley |
