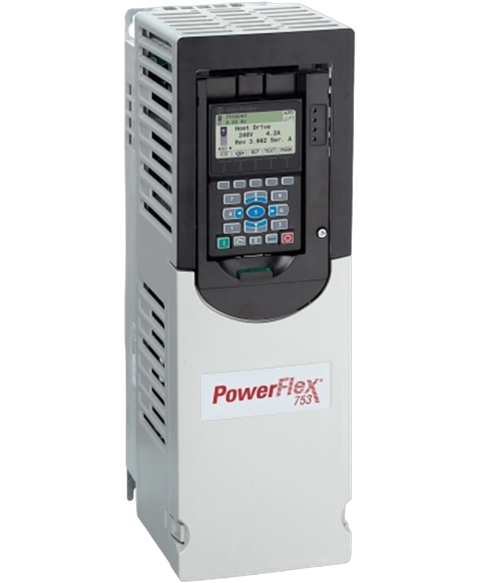

Allen Bradley 20F11NC011JA0NNNNN
The 20F11NC011JA0NNNNN from Allen Bradley is a variable frequency AC drive that offers versatility through its efficient design. It operates within a voltage class of 400 VAC and allows for a maximum power rating of 5.5 kW under normal duty. With a rated current of 11.5 Amps, this drive is well-suited for various industrial applications requiring precision control.
This Allen Bradley 20F11NC011JA0NNNNN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 520 range and is referenced internally as PartLogic SKU PL26970341104.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Variable Frequency AC Drive |
| Product Line | PowerFlex 753 |
| Part Number | 20F11NC011JA0NNNNN |
| Weight | 10.00 lbs (4.54 kg) |
| Enclosure Type | IP20/IP00, NEMA/UL Type Open |
| Cooling Method | Air-cooled |
| Embedded I/O | Included |
| Option Slots | 3 available (feedback, safety, communication) |
| Dynamic Braking Transistor | Included |
| CM Jumper | Installed |
| Filtering | Yes (default filtering enabled) |
| Mounting Orientation | Vertical panel mount |
| Rated Current | 11.5 Amps |
| Voltage Class | 400 VAC / 540 VDC |
| Power Rating | - Normal Duty: 5.5 kW |
| Frame Size | Frame 2 |
| Phase | 3-phase input |
| Brand | Allen Bradley |
