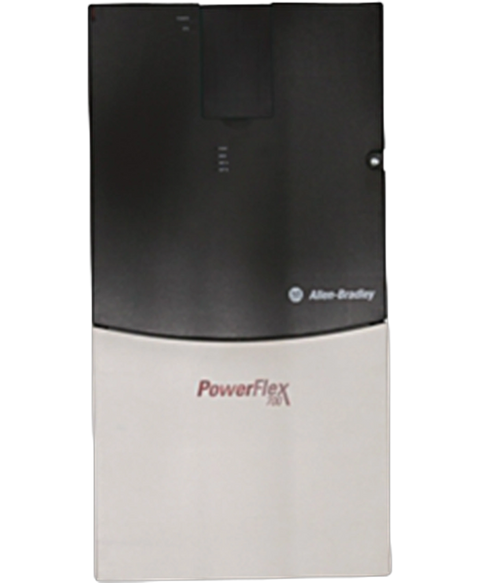

Allen Bradley 20BD125A0AYNAND0
The 20BD125A0AYNAND0 model from Allen Bradley's PowerFlex 700 series is an adjustable frequency AC drive. It operates on an input voltage of 480V AC and is rated for 100 horsepower. This unit delivers up to 125 amps output current with a fan-cooled design.
This Allen Bradley 20BD125A0AYNAND0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 700 range and is referenced internally as PartLogic SKU PL26980250178.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Adjustable Frequency AC Drive |
| Product Line | PowerFlex 700 |
| Part Number | 20BD125A0AYNAND0 |
| UPC | 820919084669 |
| Weight | 80.00 lbs (36.29 kg) |
| Input Voltage | 480V AC |
| Horsepower Rating | 100 HP |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Common Mode Choke | Yes |
| Brake IGBT | Yes |
| CE Filter | Yes |
| Input Phase | 3-Phase |
| Operator Interface | Blank Cover |
| Cooling Method | Fan Cooled |
| Control Method | Vector Control |
| Frequency | 60 Hz |
| Communication Port | None |
| I/O Voltage | 115V AC |
| Output Current | 125 Amps |
| Brand | Allen Bradley |
