Allen Bradley 20AD034C3AYNANC0

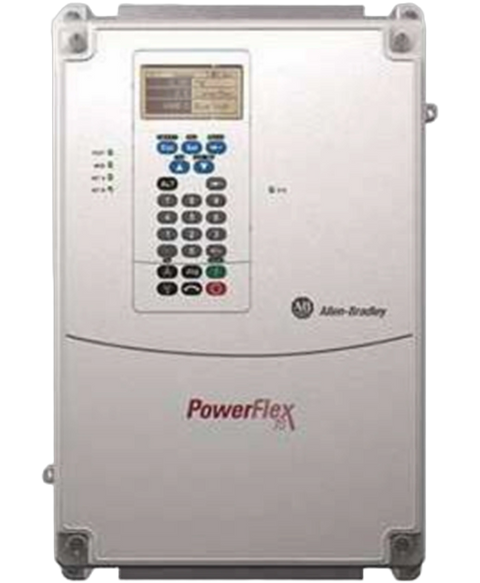

This Allen-Bradley adjustable frequency drive is a 34 Amp rated VFD. It comes with a horsepower ND output rating of 25 horsepower. This PowerFlex 70 AC drive in addition, comes with a kW ND output rating of 18.5 kW. It comes with a LCD and numeric keypad inferface module included on the cover and comes with an enhanced option board included. This AC drive is a size D frame.
This Allen Bradley 20AD034C3AYNANC0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 70 range and is referenced internally as PartLogic SKU PL26892369796.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 70 |
| Part Number | 20AD034C3AYNANC0 |
| UPC | 820919375125 |
| Weight | 21.81 lbs (9.89 kg) |
| Voltage | 480V AC |
| Ph | 3 |
| Amps | 34 |
| kW(Hp) | 18.5 (25) |
| Frame | D |
| Enclosure | Wall/Machine Mount = IP66, NEMA/UL Type 4X/12 for indoor use only |
| Interface Module | Full Numeric LCD |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
| Brand | Allen Bradley |
