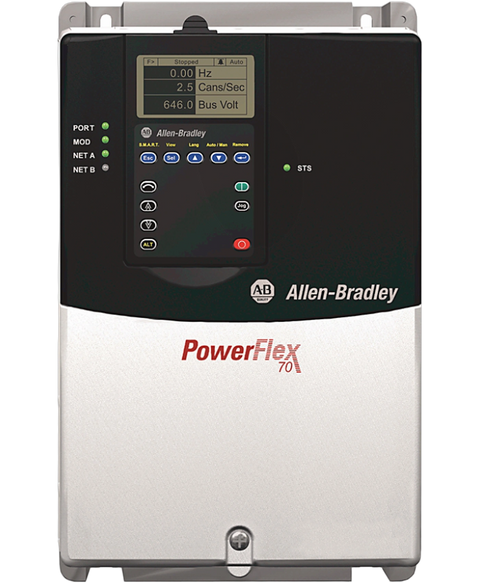

Allen Bradley 20AD014A0AYNANC0
The 20AD014A0AYNANC0 is an Allen-Bradley Adjustable Frequency AC Drive. This drive is part of the PowerFlex 70 which operates at an input voltage of 380-480 Volts AC, 3-Phase. It delivers an output voltage of 0-460 Volts AC, 3-Phase; applicable motor output power of 10 Horsepower at Normal duty and 7.5 Horsepower at heavy-duty operation, and a continuous output current of 14 Amperes. This drive is installed to an enclosure that offers an IP20,IP00, NEMA,UL Type 1 rated enclosure. It comes with an integral IGBT brake, internal AC line filter without a communication module, encoder feedback, and Human Interface Module (HIM).
This Allen Bradley 20AD014A0AYNANC0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Powerflex 70 range and is referenced internally as PartLogic SKU PL26948209942.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 70 |
| Part Number | 20AD014A0AYNANC0 |
| UPC | 820919204630 |
| Weight | 14.00 lbs (6.35 kg) |
| Frame | C |
| Enclosure Rating | IP20/IP00, NEMA/UL Type 1 |
| Input Voltage Range | 380-480 VAC, 3-Phase |
| Output Voltage Range | 0-460 VAC |
| Continuous Output Current, ND | 14 Amperes |
| Continuous Output Power, ND | 10 HP |
| Continuous Output Power, HD | 7.5 HP |
| IGBT Brake | Integrated |
| Emission Class | Filtered |
| Human Interface Module (HIM) | Not Included |
| Premiere integration | Supported |
| Control Method | Vector Control w/FORCE Technology with or without an encoder; Sensorless Vector Control Volts per Hertz |
| Voltage | 480V AC |
| Ph | 3 |
| Amps | 14 |
| kW(Hp) | 7.5 (10) |
| Enclosure | Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module | Blank Cover |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
| Brand | Allen Bradley |
