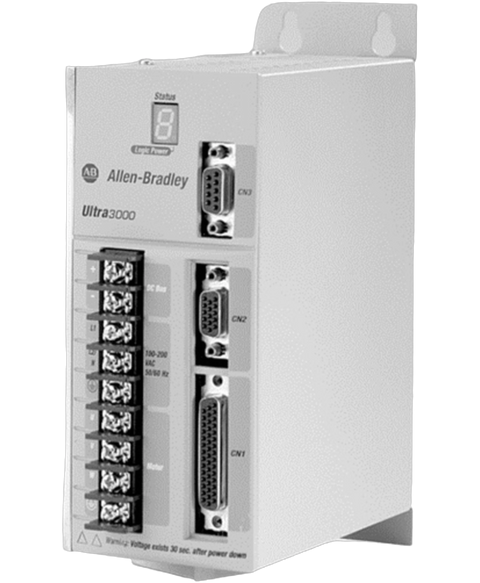

Allen Bradley 2098-DSD-HV100-SE
The Allen-Bradley 2098-DSD-HV100-SE Servo Drive has a 46 Amps (0-peak) Output Current (Intermittent), a 23 Amps (0-peak) Output Current (Continuous), and a 47-63 Hz Input Frequency (AC). It also has a 230-480 Voltage Root Means Square (Three Phase) Input Voltage (AC) and a 705 ?F Bus Capacitance.
This Allen Bradley 2098-DSD-HV100-SE is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 3000 range and is referenced internally as PartLogic SKU PL26940997128.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Ultra3000-5000 |
| Part Number | 2098-DSD-HV100-SE |
| UPC | 662453959528 |
| Weight | 23.00 lbs (10.43 kg) |
| Shunt On | 402 Volts dc |
| Bus Overvoltage | 452 Volts dc |
| Bus Capacitance | 2820 μF |
| Input Voltage (AC) | 230-480 Voltage rms, 3-Phase |
| Input Frequency (AC) | 47-63 Hz |
| Output Current (Continuous) | 46 Amps (0-peak) |
| Output Current (Intermittent) | 23 Amps (0-peak) |
| N/A | Supported |
| 230V ac (rms) Nom | 0.55 A |
| 360V ac (rms) Nom | 0.35 A |
| 480V ac (rms) Nom | 0.25 A |
| 230V ac (0-pk) Max inrush | 47 A |
| Nominal, 115V ac input, | 1.0 Amps rms |
| Nominal, 230V ac input, | 0.5 Amps rms |
| Shunt Off | 420 Volts dc |
| Series | Ultra 3000 Drives |
| Auxiliary Power Supply | Yes |
| Nominal Input Current (AC) | 14 Amps Root Means Square |
| Features | Sercos |
| Internal Shunt Resistance | 40 Ohms |
| Brand | Allen Bradley |
