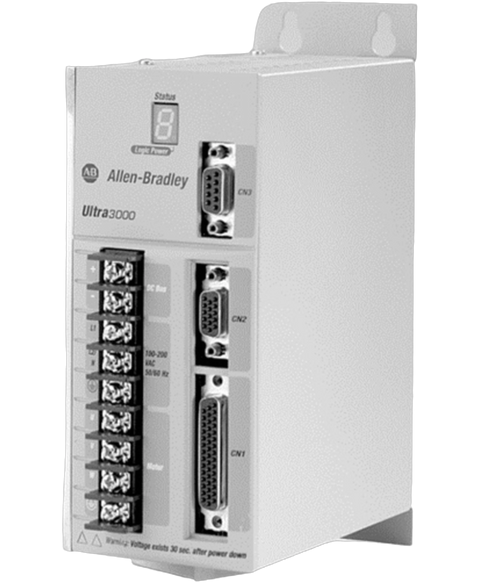

Allen Bradley 2098-DSD-HV050-SE
The Allen-Bradley 2098-DSD-HV050-SE is an Ultra 3000 Multi-Axis Digital Servo Drive with SERCOS interface. This Digital Servo Drive requires an input voltage of 230-480V rms, 3-Phase with frequency of 47-63 Hz. It has a continuous output power of 2.5 kW at 230VAC and 5.0 kW at 460VAC with Continuous Output Current 11 A and Intermittent Output Current of 22 A
This Allen Bradley 2098-DSD-HV050-SE is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 3000 range and is referenced internally as PartLogic SKU PL26946465399.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Ultra3000-5000 |
| Part Number | 2098-DSD-HV050-SE |
| UPC | 662453959511 |
| Weight | 19.00 lbs (8.62 kg) |
| Shunt On | 800V dc |
| Bus Overvoltage | 810V dc |
| Bus Capacitance | 470 ?F |
| Input Voltage (AC) | 230...480V rms Three-phase) |
| Input Frequency (AC) | 47-63 Hz |
| Nominal Input Current (AC) | 7 Amp, rms |
| Output Current (Continuous) | 22 Amps (0-peak) |
| Output Current (Intermittent) | 11 Amps (0-peak) |
| Features | Indexing |
| Internal Shunt Resistance | 120 ? |
| Series | Ultra 3000 Drives with SERCOS |
| Communication Port | One (1) Serial Port |
| Data Rate | Serial: 1200, 2400, 4800, 9600, 19200, and 38400 baud SERCOS: 4 and 8 Mbit |
| Shunt Off | 750V dc |
| Status Indicator | Seven Segment Status LED |
| Auxiliary Power Supply | Yes |
| Brand | Allen Bradley |
