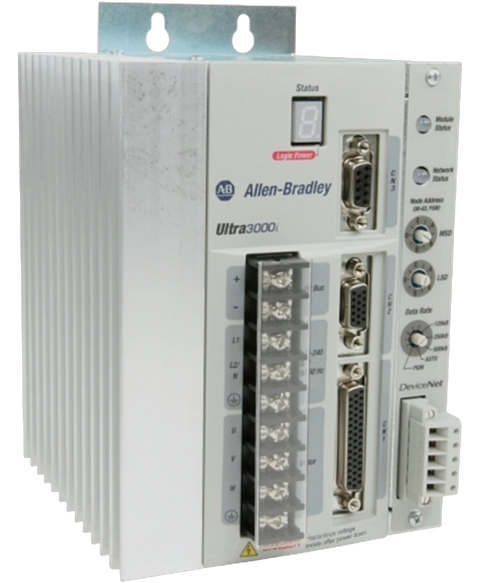

Allen Bradley 2098-DSD-020X-DN
The 2098-DSD-020X-DN is part of the Ultra 3000 Motion Control series of Allen-Bradley. This product is specifically a Digital Servo drive operable at an input supply voltage of 120VAC , 240 VAC, 1-Phase, 50-60 Hz, and an input current of 18 Amperes. This servo drive delivers an output voltage of 120 , 240 VAC, 3-Phase, programmable frequency range of 0-400 Hz, maximum continuous output current of 10 amperes, and maximum peak output current of 30 Amperes. This servo drive has an integrated DeviceNet communication interface and supports indexing functions.
This Allen Bradley 2098-DSD-020X-DN is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 3000 range and is referenced internally as PartLogic SKU PL26805416812.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Ultra3000-5000 |
| Part Number | 2098-DSD-020X-DN |
| UPC | 662453934402 |
| Weight | 5.00 lbs (2.27 kg) |
| Shunt On | N/A |
| Bus Overvoltage | 400 VDC |
| Bus Capacitance | 1880 μF |
| Input Voltage (AC) | 120 - 240 Voltage rms, 1-Phase |
| Input Frequency (AC) | 47-63 Hz |
| Output Current (Continuous) | 30 Amps (0-peak) |
| Output Current (Intermittent) | 10 Amps (0-peak) |
| Continuous output power @ 230 VAC | 1.0 kW |
| Continuous output power @ 480 VAC | 2.0 kW |
| Indexing | Supported |
| DeviceNet | Supported |
| Contact output | One (1) Form A contacts |
| Series | Ultra 3000 Drives |
| Product Family | Ultra 3000 |
| Product Description | Digital Servo Drive |
| Input Voltage | 120 / 240 VAC rms, 1-Phase |
| Auxiliary Power Supply | No |
| Input current | 18 Amperes |
| Nominal Input Current (AC) | 18 Amps Root Means Square |
| Output voltage | 120 / 240 VAC rms, 3-Phase |
| Output current, peak | 30 Amperes |
| Output frequency | 0-400 Hz |
| Internal shunt resistance | N/A |
| Output Power | 1.0 KW at 115 VAC; 2.0 kW at 230 VAC |
| Communication interface | integrated DeviceNet interface |
| Features | DeviceNet and Indexing |
| Brand | Allen Bradley |
