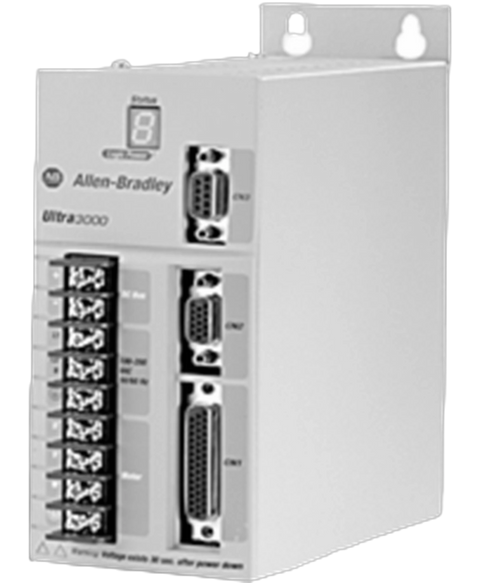

Allen Bradley 2098-DSD-020
The Allen-Bradley 2098-DSD-020 is an Ultra 3000 Multi-Axis Digital Servo Drive. This Digital Servo Drive is a Standard drive requires an input voltage of 100-240VAC rms, 1-Phase with frequency of 47-63 Hz. It has a continuous output power of 1kW with Continuous Output Current 10A and Intermittent Output Current of 30A.
This Allen Bradley 2098-DSD-020 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 3000 range and is referenced internally as PartLogic SKU PL26805527913.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Ultra3000-5000 |
| Part Number | 2098-DSD-020 |
| UPC | 662453834887 |
| Weight | 5.00 lbs (2.27 kg) |
| Features | Standard |
| Shunt On | N/A |
| Bus Capacitance | 1880 ?F |
| Bus Overvoltage | 400 Volts dc |
| Input Frequency (AC) | 47-63 Hz |
| Input Voltage (AC) | 100-240 Voltage Root Means Square (Single Phase) |
| Auxiliary Power Supply | No |
| Nominal Input Current (AC) | 18 Amps Root Means Square |
| Output Current (Continuous) | 10 Amps (0-peak) |
| Internal Shunt Resistance | N/A |
| Communication Port | One (1) Serial Port |
| Status Indicator | Seven Segment Status LED |
| Series | Ultra 3000 Drives |
| Output Current (Intermittent) | 30 Amps (0-peak) |
| Brand | Allen Bradley |
