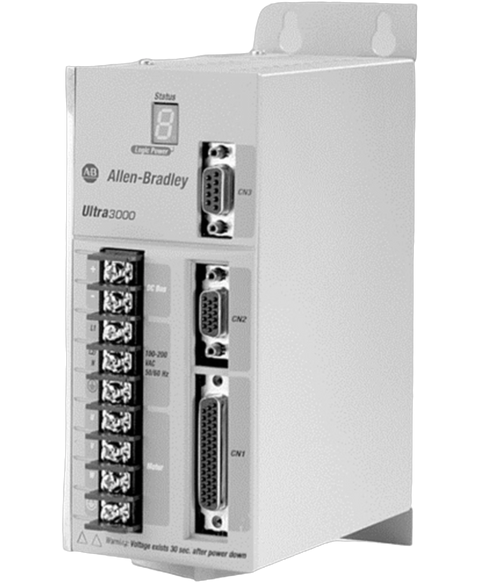

Allen Bradley 2098-DSD-010-SE
The Allen-Bradley 2098-DSD-010-SE is an Ultra 3000 Multi-Axis Digital Servo Drive with SERCOS interface. This Digital Servo Drive requires an input voltage of 100-240VAC rms, 1-Phase with frequency of 47-63 Hz. It has a continuous output power of 1kW with Continuous Output Current 5A and Intermittent Output Current of 15A.
This Allen Bradley 2098-DSD-010-SE is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 3000 range and is referenced internally as PartLogic SKU PL26966653653.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Ultra3000-5000 |
| Part Number | 2098-DSD-010-SE |
| UPC | 662453835457 |
| Weight | 4.81 lbs (2.18 kg) |
| Shunt On | N/A |
| Bus Overvoltage | 400 Volts dc |
| Bus Capacitance | 1880 ?F |
| Input Voltage (AC) | 100-240 Voltage Root Means Square (Single Phase) |
| Input Frequency (AC) | 47-63 Hz |
| Nominal Input Current (AC) | 9 Amps Root Means Square |
| Output Current (Continuous) | 5 Amps (0-peak) |
| Features | SERCOS |
| Internal Shunt Resistance | N/A |
| Series | Ultra 3000 Drives with SERCOS interface |
| Communication Port | One (1) Serial Port |
| Date Rate | 2MB - 8MB |
| Status Indicator | Seven Segment Status LED |
| Output Current (Intermittent) | 15 Amps (0-peak) |
| Auxiliary Power Supply | No |
| Brand | Allen Bradley |
