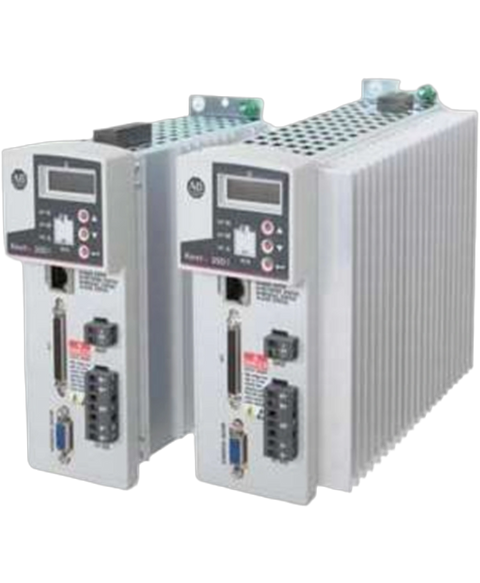

Allen Bradley 2097-V33PR3-LM
The 2097-V33PR3-LM is a Kinetix 350 Ethernet I,P servo drive. This is a single-axis servo drive with an AC input voltage range of 80-132 VAC rms, 1-phase; 80-264 VAC rms, 1-Phase and 80-264 VAC, 3-phase while the input frequency range remains at 48-62 Hz. This drive has continuous output current and power of 4 A and 1.00 kW respectively. This servo drive comes with an integrated Safe Torque Off (STO) feature.
This Allen Bradley 2097-V33PR3-LM is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 350 range and is referenced internally as PartLogic SKU PL26940864139.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 350 |
| Part Number | 2097-V33PR3-LM |
| UPC | 884951255999 |
| Weight | 4.00 lbs (1.81 kg) |
| Product Description | 2097 Kinetix 350 Ethernet I/P Single Drives |
| Input Voltage, nominal | 120 VAC-240 VAC; 1-phase / 3-phase |
| Input voltage range | 80…132V rms single-phase; 80…264V rms single-phase; 80…264V rms three-phase |
| Input Frequency | 48…62 Hz |
| Main AC input current, Nom (rms) | Single Phase: 8.6 A Three Phase: 5.0 A |
| Main AC input current, Nom (0-pk) | Single Phase: 1.15 A Three Phase: 2.3 A |
| Control power back-up input voltage | 20…26V DC |
| Control power back-up input current, nominal | 500 mA |
| Control power back-up input current, max. inrush | 30 A |
| Continuous output current (rms) | 4.0 A |
| Continuous output current (0-pk) | 5.7 A |
| Peak output current (rms) | 12.0 A |
| Peak output current (0-pk) | 17.9 A |
| Continuous power output | 1.0 kW |
| Overvoltage | 430 VDC |
| Short-circuit current rating | 100,000 A (rms) symmetrical |
| Product Bulletin | Kinetix 300 |
| Integrated AC line filter | Yes |
| Safe Torque-Off | Yes |
| 120 Volts Doubler Mode | No |
| Continuous Output Current (0-peak) | 5.7 Amperes |
| Integrated AC (EMC) Line Filter | No |
| Input Voltage | 80-132 VAC rms, 1-phase; 80-264 VAC rms, 1-Phase; 80-264 VAC, 3-phase |
| Power Rating | 1.0 kWatts |
| Brand | Allen Bradley |
