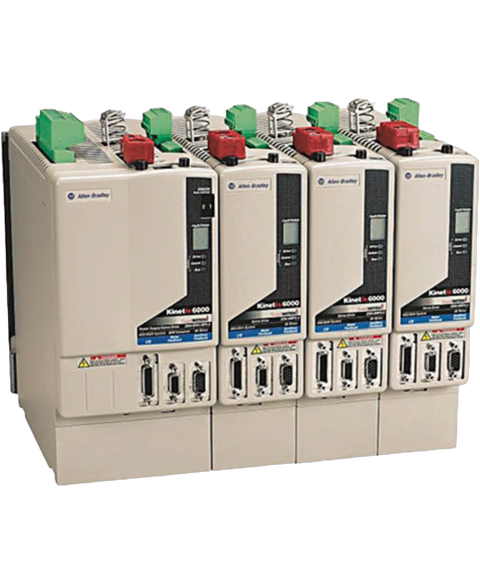

Allen Bradley 2094-PRS8
The Allen-Bradley 2094-PRS8 is a Kinetix 6000 Power Rail. This is an 8-axis slim power rail that is mainly used to deliver power and control signals provided by the Integrated Axis Module (IAM) to the adjacent and nearby components such as Axis Module, shunt and slot filler. This power rail operates at 230 Volts AC , 460 Volts DC voltages and supports 1 IAM module and a maximum of 7 additional modules.
This Allen Bradley 2094-PRS8 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26960697274.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-PRS8 |
| UPC | 820919141454 |
| Weight | 7.06 lbs (3.20 kg) |
| Drive System Voltage | 230 VAC; 430 VDC |
| No. of slots | Eight (8) slots |
| No. of supported IAM module | One (1) |
| Compatible modules | Axis Module (AM), Shunt Module, Slot Filler Module |
| Removal and Insertion under Power (RIUP) | Not supported |
| Mounting | Panel Mount |
| Subpanel material | Zinc plated; Paint free steel panel |
| Mounting hardware | M6 metric (1/4x20) |
| Components | Braided ground strap; protective covers |
| Optional installation accessory | Mounting bracket |
| Module Type | Slim Power Rail |
| Applications | 230 or 460 Volt Drive Systems |
| Module Capacity | 1 IAM, 7 Additional |
| Number of Axes | 8-Axes |
| Brand | Allen Bradley |
