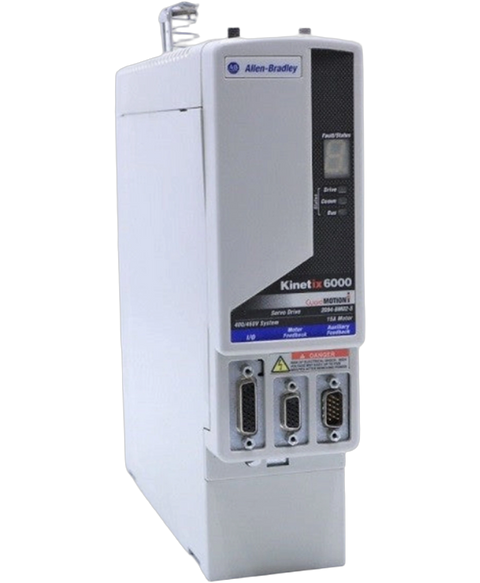

Allen Bradley 2094-BM02-S
The Allen-Bradley 2094-BM02-S is a Kinetix 6000 Drive component. This module is a 400VAC class Axis Module with continuous current of 10.3 A and peak current of 14.6 A. It has an efficiency of 98% and short-circuit current rating of 200,000 A (rms) symmetrical and integrated Safe Torque-off feature.
This Allen Bradley 2094-BM02-S is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26805546593.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-BM02-S |
| UPC | 820919595714 |
| Weight | 7.06 lbs (3.20 kg) |
| Internal Shunt Resistor | 115 Ohms |
| Efficiency | 98% |
| Product Description | Integrated Axis Module |
| Continuous Output Current | 10.3 A |
| Continuous Output Current (sine) | 14.6 A |
| Peak Current | 25.8 A |
| Continuous power out (nom) | 6.6 kW |
| Voltage Class | 400V |
| Nom Drive Voltage | 360-480 Volts (3 Phase) |
| Internal Shunt continuous power | 50 W |
| Internal shunt peak power | 5.6 kW |
| Capacitance | 270 ?F |
| Drive Type | Multi-Axis Servo Drive |
| Input Voltage | 460 Volts |
| Heat Dissipation | 93 Watts |
| Brake Current Value | 1 or 3 Amps |
| Brand | Allen Bradley |
