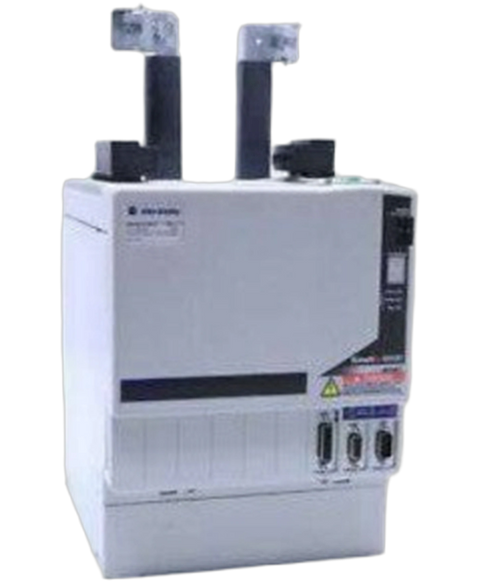

Allen Bradley 2094-BC07-M05-S
The Allen-Bradley 2094-BC07-M05-S is a n Integrated Axis Module. This module has input power range of 360-480V, with Continuous output current to bus of 67.7 A and Continuous power output to bus of 45 kW.
This Allen Bradley 2094-BC07-M05-S is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26805529944.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-BC07-M05-S |
| UPC | 820919595691 |
| Weight | 20.31 lbs (9.21 kg) |
| AC Input Voltage | 324…528V rmsthree-phase (360…480V nom) |
| AC Input Frequency | 47…63 Hz |
| DC Input Voltage (Common Bus Follower) | 458…747V DC |
| Product Description | Integrated Axis Module |
| Operating Temperature | 32-122 F (0-50 C) |
| Power Dissipation | 71-226 Watts |
| DC input current (common-bus follower | 67.7 A |
| Control power AC input voltage | 95…264V rmssingle-phase (110…240V rms nom) |
| Control power cycling, max | 2 cycles per minute with a 90% on-time, 10% off-time duty cycle |
| Peak output current to bus | Series A: 135.4 A Series B: 203.2 A |
| Continuous power output to bus | 45 kW |
| Peak power output | Series A: 90 kW Series B: 135 kW |
| Module Type | IAM 400 Volt Class |
| AC Input Current (nom rms) | 71.0 Amperes |
| AC Input Current (Max Inrush 0-peak) | 62.2 Amperes |
| Internal Shunt (Continuous Power) | 200 Watts |
| Internal Shunt (Peak Power) | 22.5 Kilowatts |
| Internal Shunt Resistor | 28.75 Ohms |
| Efficiency | 97% |
| Brand | Allen Bradley |
