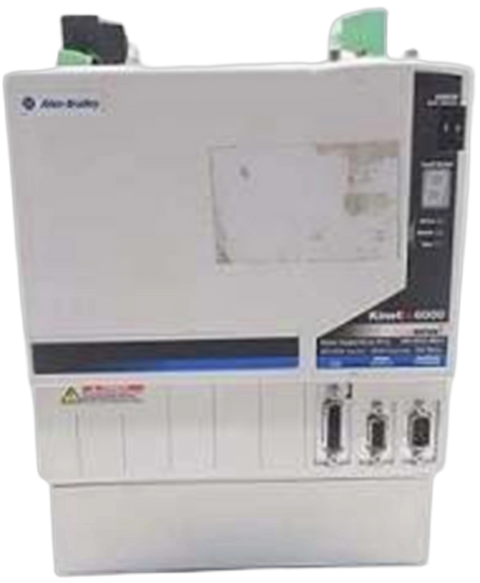

Allen Bradley 2094-BC04-M03-S
The Allen-Bradley 2094-BC04-M03-S is a n Integrated Axis Power Modul. This module has input power range of 360-480V, with converter rating of 28 kW and 30 A inverter rating. This module has an output power rating of 50-135 Watts.
This Allen Bradley 2094-BC04-M03-S is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26805530074.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-BC04-M03-S |
| UPC | 820919595684 |
| Weight | 20.00 lbs (9.07 kg) |
| Product Description | Integrated Axis Module |
| Operating Temperature | 32-122 F (0-50 C) |
| Power Dissipation | 94-255 Watts |
| Converter Section Output | 28 kW |
| Inverter Section Output Current | 30 A |
| Input Voltage Range | 400/460VAC |
| Bandwidth | Velocity Loop: 500 Hz Current Loop: 1300 Hz |
| PWM Frequency | 4 kHz |
| Internal Shunt Continuous Power | 200W |
| Internal Shunt Peak Power | 22.5 kW |
| Module Location | Leftmost of the Power Rail |
| Module Type | IAM 400 Volt Class |
| AC Input Voltage | 324-528 Volts rms 3 Phase (360-480 Volts nom) |
| AC Input Frequency | 47-63 Hertz |
| AC Input Current (nom rms) | 44.0 Amperes |
| AC Input Current (Max Inrush 0-peak) | 31.1 Amperes |
| DC Input Voltage (Common Bus Follower) | 458-747 Volts |
| DC Input Current (Common Bus Follower) | 41.5 Amperes |
| Internal Shunt Resistor | 28.75 Ohms |
| Efficiency | 97% |
| Brand | Allen Bradley |
