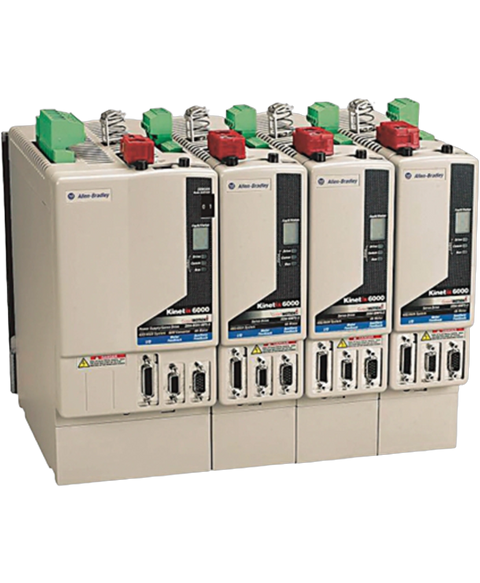

Allen Bradley 2094-BC02-M02-S
The Allen-Bradley 2094-BC02-M02-S is a Kinetix 6000 Drive component. This module is a 400VAC class Integrated Axis Module with continuous output current to bus 22.6 A and peak output current to bus of 45.2 A for series A and 56.4 for Series B, C and D drives. It has an efficiency of 97% and short-circuit current rating of 200,000 A (rms) symmetrical. This module has Safe-Torque Off functionality.
This Allen Bradley 2094-BC02-M02-S is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26805642548.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-BC02-M02-S |
| UPC | 820919595677 |
| Weight | 16.00 lbs (7.26 kg) |
| Efficiency | 97% |
| Internal Shunt Resistor | 115 Ohms |
| Internal Shunt (Continuous Power) | 50 Watts |
| Internal Shunt (Peak Power) | 5.6 Kilowatts |
| DC Input Current (Common Bus Follower) | 22.6 Amps |
| DC Input Voltage (Common Bus Follower) | 458 to 747 Volts |
| AC Input Current (Nominal RMS) | 24.0 Amps |
| AC Input Current (Maximum Inrush 0-peak) | 22.0 Amps |
| AC Input Frequency | 47 to 63 Hertz |
| AC Input Voltage | 324 to 528 Volts RMS 3 Phase (360 to 480 Volts nom) |
| Module Type | IAM 400 Volt Class |
| Brand | Allen Bradley |
