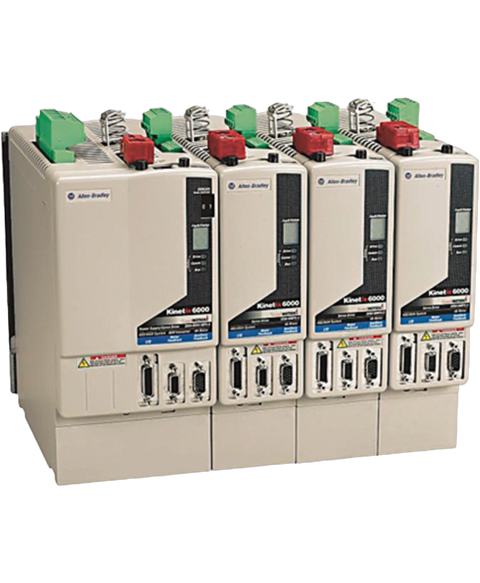

Allen Bradley 2094-BC01-M01
The 2094-BC01-M01 is a n Integrated Axis Module that is part of the Kinetix 6000 Multi-axis drive. This module is a 400V class. This module has continuous output power to bus of 6 kW; peak output power 12 kW for series A and 15 kW for Series B,C and D drives. It has a Continuous output current to bus of 9.0 A, Peak output current to bus of 18.1 A for Series A and 22.6 A for Series B,C and D. It does not have an integrated Safe torque Off (STO) feature.
This Allen Bradley 2094-BC01-M01 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26965294469.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Multi-axis servo drive |
| Product Line | Kinetix 6000 |
| Part Number | 2094-BC01-M01 |
| Weight | 12.00 lbs (5.44 kg) |
| Product Description | Integrated Axis Module |
| Operating Temperature | 32-122 F (0-50 C) |
| Continuous power output to bus | 6kW |
| Continuous output current to bus | 9.0 A |
| AC input Voltage | 324…528V rms,three-phase (360…480V nom) |
| Control Voltage | 95…264V rmss, ingle-phase (110…240V rms nom) |
| Bus overvoltage | 825V DC |
| Bus undervoltage | 275V DC |
| Power Dissipation range | 18-33 Watts |
| Installation Clearance | 80 mm (3.10 in.) |
| Control Input Fuse | FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) |
| Control Input Breaker | 1492-SPM2D060 or 1492-SPM1D150 |
| DC Bus Power Fuse | Bussmann Fuse : WJ-20A14F Mersen: DCT20-2; HSJ20 |
| Series | Kinetix 6000 Modular |
| Voltage Rating | 460 Volts AC |
| Nominal Drive Voltage | 360 to 480 Volts AC |
| Status Indicators | LED |
| Ambient Temperature Range | 0 to 50 degrees Celsius |
| Certifications | C-Tick, CCC, CUL, KC, and UL |
| Feedback Connectors | Auxiliary and Motor |
| Brand | Allen Bradley |
