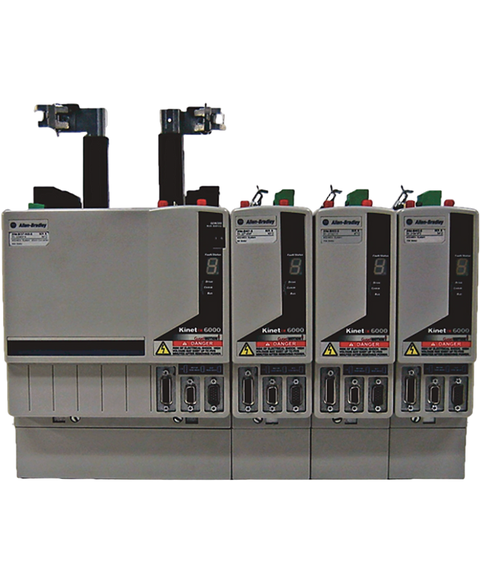

Allen Bradley 2094-AC16-M03-S
The 2094-AC16-M03-S servo drive from Allen-Bradley is a Kinetix 6000 series multi-axis and integrated axis servo drive. It has a nominal AC voltage rating of 230 Volts AC and a 3-phase input voltage range of 195 to 264 Volts AC. The 2094-AC16-M03-S multi-axis servo drive also supports 47 to 63 Hertz of frequency. This drive can operate with up to 95% efficiency. The 2094-AC16-M03-S multi-axis servo drive supports 200 Watts of continuous shunt power and 5700 Watts of peak shunt power.
This Allen Bradley 2094-AC16-M03-S is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26965282946.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-AC16-M03-S |
| UPC | 820919595585 |
| Weight | 12.00 lbs (5.44 kg) |
| Module Type | IAM 200 Volt Class |
| AC Input Voltage | 195-264 Volts rms 3 Phase (230 Volts nom) |
| AC Input Frequency | 47-63 Hertz |
| AC Input Current (nom rms) | 36 Amperes |
| AC Input Current (Max Inrush 0-peak) | 73 Amperes |
| DC Input Voltage (Common Bus Follower) | 275-375 Volts |
| DC Input Current (Common Bus Follower) | 36 Amperes |
| Internal Shunt (Continuous Power) | 200 Watts |
| Internal Shunt (Peak Power) | 5700 Watts |
| Internal Shunt Resistor | 28.75 Ohms |
| Efficiency | 95% |
| Brand | Allen Bradley |
