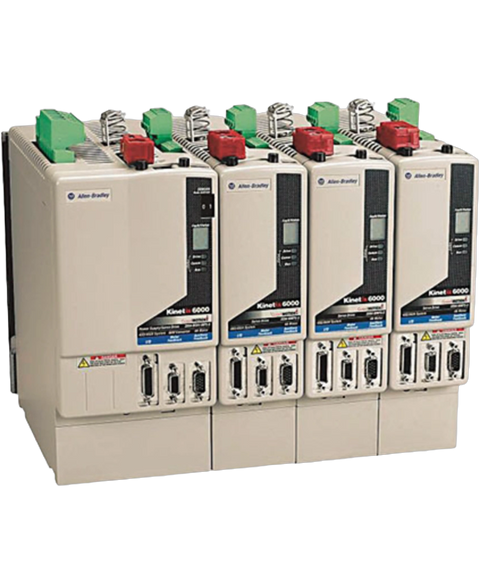

Allen Bradley 2094-AC09-M02-S
The 2094-AC09-M02-S is a Kinetix 6000 Integrated Axis Module (IAM). This module is a 230VAC, 3-Phase rated IAM with input frequency range of 47-63 Hz. This module has a Bus output voltage of 325 VDC with continuous output power to bus of 6.0 kW; Peak output power to bus of 12.0 kW and Continuous output current to bus of 19 A. It supports velocity loop bandwidth of 500 Hz and Current loop bandwidth of 1300 Hz and PWM frequency of 4 kHz. This IAM has an integrated Safe-Torque Off (STO) functionality.
This Allen Bradley 2094-AC09-M02-S is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 6000 range and is referenced internally as PartLogic SKU PL26805547027.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 6000 |
| Part Number | 2094-AC09-M02-S |
| UPC | 820919595578 |
| Weight | 6.00 lbs (2.72 kg) |
| Module Type | IAM 200 Volt Class |
| Product Description | Integrated Axis Module |
| AC Input Voltage | 195 to 264 Volts RMS |
| AC Input Frequency | 47 to 63 Hertz |
| AC input voltage range | 195…264Vrms, 3-Phase |
| AC Input Current (nom rms) | 19 Amperes |
| AC input voltage, nominal | 230 VAC |
| AC Input Current (Max Inrush 0-peak) | 37 Amperes |
| DC Input voltage | 275-375 VDC |
| DC Input Voltage (Common Bus Follower) | 275 to 375 Volts |
| Continuous power output to bus | 6.0 kW |
| DC Input Current (Common Bus Follower) | 19 Amperes |
| Continuous output current to bus | 19 A |
| Internal Shunt (Continuous Power) | 50 Watts |
| Peak power output | 12.0 kW |
| Internal Shunt (Peak Power) | 8200 Watts |
| Bus overvoltage | 415V DC |
| Internal Shunt Resistor | 20 Ohms |
| Bus undervoltage | 138 V DC |
| Efficiency | 95% |
| Installation Clearance | 50.8 mm (2.0 in.) |
| Minimum Enclosure Depth | 235 mm (9.25 in.) |
| Mounting location | Power Rail |
| Brand | Allen Bradley |
