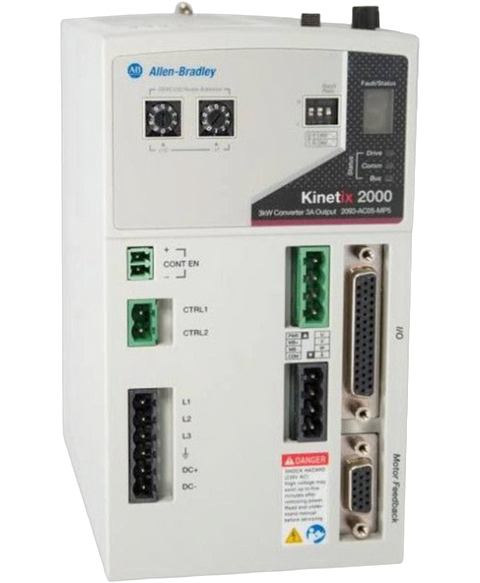

Allen Bradley 2093-AC05-MP5
The 2093-AC05-MP5 is a Kinetix 2000 Integrated Axis Module (IAM). This moduleis a 230VAC, 3-Phase rated IAM with input frequency range of 47-63 Hz. This module has a Bus output voltage of 325 VDC with continuous output power to bus of 3.0 kW; Peak output power to bus of 6.0 kW and Continuous output current to bus of 9.67 A. It supports velocity loop bandwidth of 500 Hz and Current loop bandwidth of 860 Hz and PWM frequency of 8 kHz.
This Allen Bradley 2093-AC05-MP5 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Kinetix 2000 range and is referenced internally as PartLogic SKU PL26940867275.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | Kinetix 2000 |
| Part Number | 2093-AC05-MP5 |
| UPC | 820919777202 |
| Weight | 2.00 lbs (0.91 kg) |
| Product Description | Integrated Axis Module |
| AC input voltage range | 170…264Vrms, 3-Phase |
| AC input voltage, nominal | 230 VAC |
| DC Input voltage | 240-375 VDC |
| Continuous power output to bus | 3.0 kW |
| Continuous output current to bus | 9.67 A |
| Peak power output | 6.0 kW |
| Bus overvoltage | 425V DC |
| Wattage | 900 W |
| Voltage Rating | 230 VAC |
| Control | Sercos Interface |
| Special Features | Integrated Axis Module |
| Type | Servo Drive |
| Bus undervoltage | 137.5V DC |
| Installation Clearance | 50.8 mm (2.0 in.) |
| Minimum Enclosure Depth | 235 mm (9.25 in.) |
| Mounting location | Power Rail |
| Brand | Allen Bradley |
