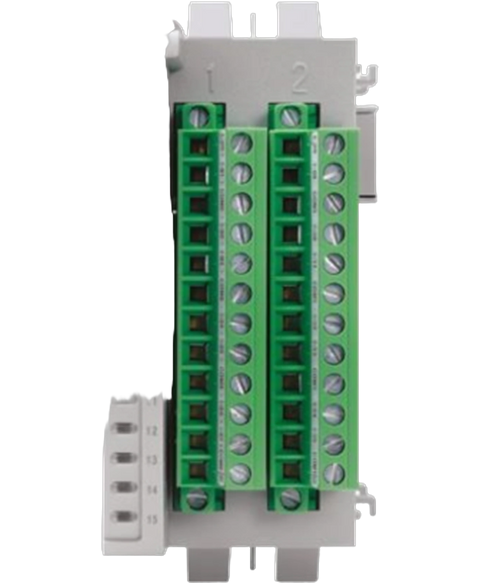

Allen Bradley 2085-OW16
The Allen-Bradley 2085-OW16 is a Micro800 relay output module. This module features Sixteen (16) AC , DC relay output channels that operate at nominal voltages of 120VAC, 240VAC, 240VAC, 24VDC and 125VDC. This module is compatible for use with Micro850 and Micro870 Programmable Logic Controllers (PLC).
This Allen Bradley 2085-OW16 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output > Micro800 range and is referenced internally as PartLogic SKU PL27212200866.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Expansion I/O Module |
| Product Line | Micro 850 |
| Part Number | 2085-OW16 |
| UPC | 885630082332 |
| Weight | 0.56 lbs (0.26 kg) |
| Product Description | Micro 800 Expansion I/O module |
| Compatible Controllers | Micro 850; Micro 870 |
| Mounting | DIN Rail / Panel mounting |
| Voltage Category | AC/DC normally open relay |
| Operating Voltage range | 120VAC, 240VAC, 240VAC, 24VDC and 125VDC |
| Bus Current draw, 5.0 V | 120 mA |
| Bus Current draw, 24 V | 50 mA |
| Power Dissipation | 2.72 Watts |
| Wire size | 0.25... 2.5 mm2 (22...14 AWG) solid or stranded copper wire rated at 75 °C (167 °F ), or greater, 1.2 mm (3/64 in.) insulation max. |
| Insulation strip length | 10 mm (0.39 in.) |
| Inputs | N/A |
| Input Type | N/A |
| Outputs | 16 |
| Output Type | Relay, 2A |
| Brand | Allen Bradley |
