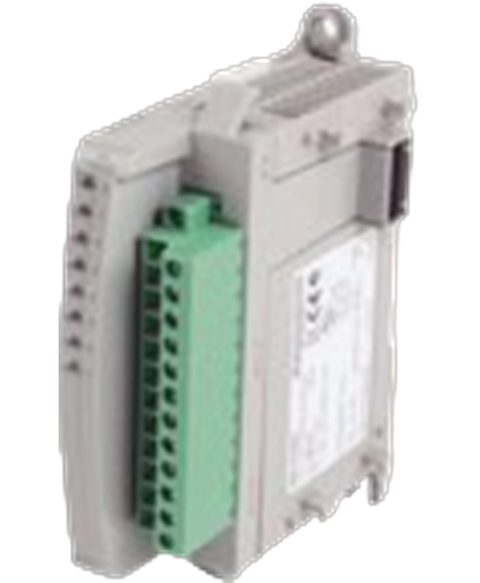

Allen Bradley 2085-IA8
The 2085-IA8 is an AC discrete input module designed for the Micro 850 series from Allen Bradley. It features eight AC input channels suitable for a voltage class of 120 volts AC and operates within a voltage range of 74 to 120 volts AC, providing flexibility in various applications.
This Allen Bradley 2085-IA8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Micro800 range and is referenced internally as PartLogic SKU PL27209577034.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | AC Discrete Input Module |
| Product Line | Micro 850 |
| Part Number | 2085-IA8 |
| UPC | 885630082349 |
| Weight | 0.63 lbs (0.28 kg) |
| Total Inputs | 8 AC channels |
| Input Voltage Class | 120 Volt AC |
| Operating Voltage | 74 to 120 Volt AC |
| Rated Input Current | 12.5 mA at 120 Volt AC |
| Minimum ON Current | 5 mA at 74 Volt AC |
| Maximum OFF Current | 2.5 mA |
| Maximum OFF Voltage | 20 Volt AC |
| Input Resistance | 22.2 kΩ maximum |
| Peak Inrush Current | 450 mA |
| Signal Delay | 20 ms maximum |
| Channel Isolation | 150 Volt continuous reinforced |
| Dielectric Strength | 1950 Volt DC for 60 s |
| Backplane Current | 150 mA at 5 Volt DC |
| Brand | Allen Bradley |
