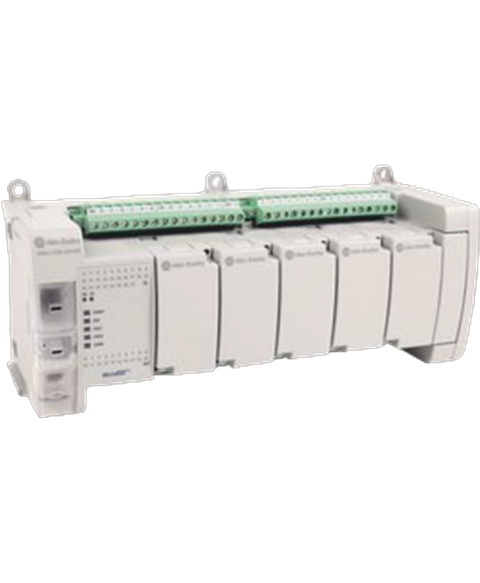

Allen Bradley 2080-LC50-48AWB
The 2080-LC50-48AWB is a Micro 850 Programmable Logic Controller (PLC). This controller comes with embedded 48 Point I,O channels - specifically, twenty-eight (28) 120 Volt AC inputs; twenty (20) relay outputs, and six (6) High-Speed counters. It has an embedded 24 Volt DC power supply and USB 2.0 non-isolated port, as well as one (1) RJ-45 that supports Ethernet ,IP Class 3 and Modbus TCP,IP at transmission rates of 10,100 Mbps.
This Allen Bradley 2080-LC50-48AWB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Micro850 range and is referenced internally as PartLogic SKU PL26986692848.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Logic Controller (PLC) |
| Product Line | Micro 850 |
| Part Number | 2080-LC50-48AWB |
| UPC | 884951711679 |
| Weight | 0.13 lbs (0.06 kg) |
| Number of inputs | 28 inputs |
| Input Voltage category | 120 VAC |
| Number of output | Ten (10) Relay outputs |
| High-Speed counter (HSC) | 4 HSC inputs |
| Communication ports | One (1) USB; One (1) RJ45 |
| Supported protocols | Ethernet I/P; Modbus TCP/IP |
| Input voltage | 24VDC |
| Expansion Slots | Five (5) |
| Maximum I/O supported | 132 I/O |
| Programming language | Ladder; Function Block; Structured Text |
| No. of Steps / Instructions | 10K Steps |
| Data | 20K Bytes |
| Inputs | 28 |
| Input Type | 120V AC |
| Outputs | 20 |
| Output Type | Relay |
| Motion Axis | N/A |
| HSC | N/A |
| Base Plug-in Slots | 5 |
| Base 100KHz HSC max. | 6 HSC |
| Expansion I/O Modules | Upt to 4 Modules |
| Max. Digital I/O | 132 |
| Brand | Allen Bradley |
