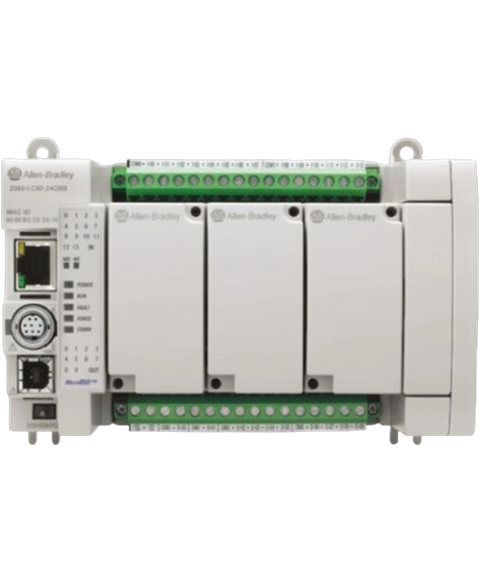

Allen Bradley 2080-LC50-24QWB
The 2080-LC50-24QWB is a Micro 850 Programmable Logic Controller (PLC). This controller comes with embedded 24 Point I,O channels specifically, eight (8) high-speed 24 Volt and six (6) standard 24 Volt inputs, both input types supporting sink,source configuration and 24 Volt AC as well. It also has ten (10) relay outputs and four (4) high-speed counters. It has an embedded 24 Volt DC power supply and USB 2.0 non-isolated port and one (1) RJ-45 that supports Ethernet ,IP Class 3, and Modbus TCP,IP at transmission rates of 10,100 Mbps.
This Allen Bradley 2080-LC50-24QWB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Micro850 range and is referenced internally as PartLogic SKU PL26801446030.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Logic Controller (PLC) |
| Product Line | Micro 850 |
| Part Number | 2080-LC50-24QWB |
| UPC | 884951711686 |
| Weight | 1.50 lbs (0.68 kg) |
| Number of inputs | Fourteen (14) 24V inputs |
| Number of output | Ten (10) Relay outputs |
| High-Speed counter (HSC) | 4 HSC inputs |
| Communication ports | One (1) USB; One (1) RJ45 |
| Supported protocols | Ethernet I/P; Modbus TCP/IP |
| Input voltage | 24VDC |
| Expansion Slots | Three (3) |
| Maximum I/O supported | 132 I/O |
| Programming language | Ladder; Function Block; Structured Text |
| No. of Steps / Instructions | 10K Steps |
| Data | 20K Bytes |
| Inputs | 14 |
| Input Type | 12/24V |
| Outputs | 10 |
| Output Type | Relay |
| Motion Axis | N/A |
| HSC | 4 HSC |
| Base Plug-in Slots | 3 |
| Base 100KHz HSC max. | 4 HSC |
| Expansion I/O Modules | Upt to 4 Modules |
| Max. Digital I/O | 132 |
| Brand | Allen Bradley |
