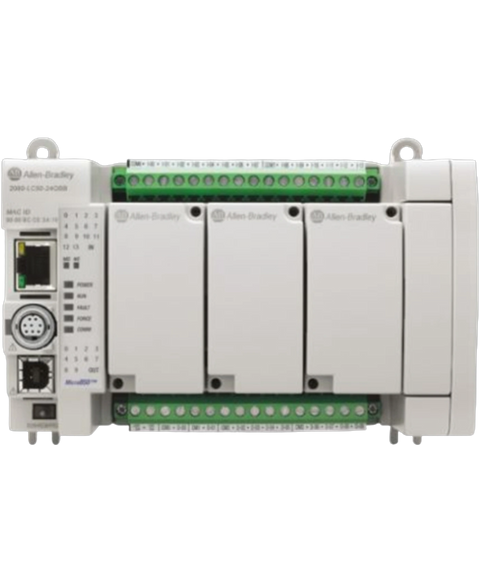

Allen Bradley 2080-LC50-24QBB
The Allen-Bradley,Rockwell Automation 2080-LC50-24QBB controller is a Micro 850 programmable logic controller. It has 24 input and output points. It comes with 6 standard DC inputs, 8 high-speed DC inputs, 8 standard outputs, and 2 high-speed outputs. The 2080-LC50-24QBB programmable logic controller operates at -4 to 149 degrees Fahrenheit and it can be stored at -40 to 185 degrees Fahrenheit.
This Allen Bradley 2080-LC50-24QBB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Micro850 range and is referenced internally as PartLogic SKU PL26801441244.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Logic Controller |
| Product Line | Micro 850 |
| Part Number | 2080-LC50-24QBB |
| UPC | 884951711709 |
| Weight | 0.94 lbs (0.43 kg) |
| Product Description | Micro 850 Programmable Logic Controller (PLC) |
| Input Voltage category | 24V sink/source 24V AC, 50/60 Hz |
| No. of High-speed inputs | Eight (8) |
| High-speed input location | Inputs 0-7 |
| Standard input location | Inputs 8 and higher |
| Output voltage category | 24VDC |
| No. of high-speed outputs | 2 |
| High-speed output location | Outputs 0-1 |
| no. of standard outputs | 8 |
| Standard output location | Outputs 2 and higher |
| Base Serial Port | One (1) RS-232/485 non-Isolated |
| Configuration port | One (1) USB Type B |
| Ethernet port | One (1) RJ45 port |
| Power supply voltage | 20.4…26.4V DC Class 2, or Limited Voltage Limited Current Source (LVLC) |
| Inputs | 14 |
| Input Type | 12/24V |
| Outputs | 10 |
| Output Type | 24V Source |
| Motion Axis | 2 PTO |
| HSC | 4 HSC |
| Base Plug-in Slots | 3 |
| Base 100KHz HSC max. | 4 HSC |
| Expansion I/O Modules | Upt to 4 Modules |
| Max. Digital I/O | 132 |
| Brand | Allen Bradley |
