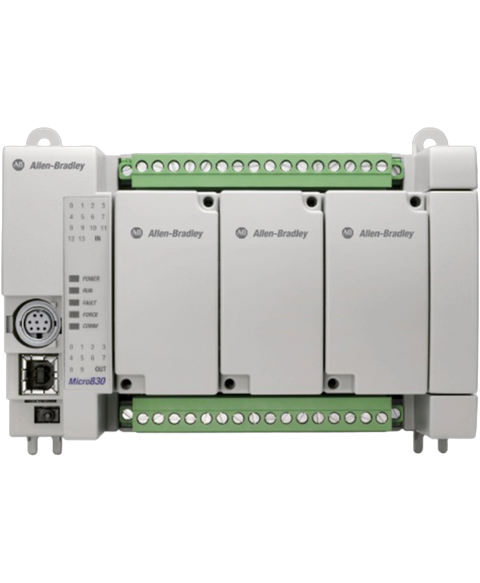

Allen Bradley 2080-LC30-24QWB
The 2080-LC30-24QWB is a Micro 830 Programmable Logic Controller (PLC). This controller is part of the Micro 800 series that is manufactured by Allen-Bradley. This controller is designed for use in micro or small automation requirements, featuring One (1) USB 2.0 configuration and programming port One (1) RS232 , 485 combo port. This controller has built-in Fourteen (14) 24 VDC , VAC discrete inputs and Ten (10) Normally Open (N.O.) relay outputs. It supports the installation of Three (3) expansion modules.
This Allen Bradley 2080-LC30-24QWB is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Micro830 range and is referenced internally as PartLogic SKU PL26805523295.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Logic Controller |
| Product Line | Micro 830 |
| Part Number | 2080-LC30-24QWB |
| UPC | 885630058252 |
| Weight | 1.63 lbs (0.74 kg) |
| Inputs | 14 |
| Input Type | 24V DC/AC |
| Product Description | Programmable Logic Controller (PLC) |
| Outputs | 10 |
| Integrated discrete inputs | Fourteen (14) 24 VDC / VAC |
| Output Type | Relay |
| Integrated outputs | None |
| Motion Axis | N/A |
| Integrated Relay outputs | Ten (10) Relay |
| HSC | 4 HSC |
| Integrated Analog input | None |
| Max. Digital I/O | 48 |
| Integrated Analog output | None |
| Plug-In Slots | 3 |
| Built-in communication interfaces | One (1) USB 2.0; One (1) RS232 / RS485 combo port |
| Base Serial Port | RS-232/485 non-Isolated |
| Supported Protocols | Modbus RTU Master/Slave, ASCII, CIP |
| Maximum number of steps | 4K Steps |
| Maximum data size | 8K bytes |
| Floating Point Math | Supported |
| PID control | Supported |
| User defined blocks | Supported |
| Brand | Allen Bradley |
