Allen Bradley 2080-LC10-12AWA

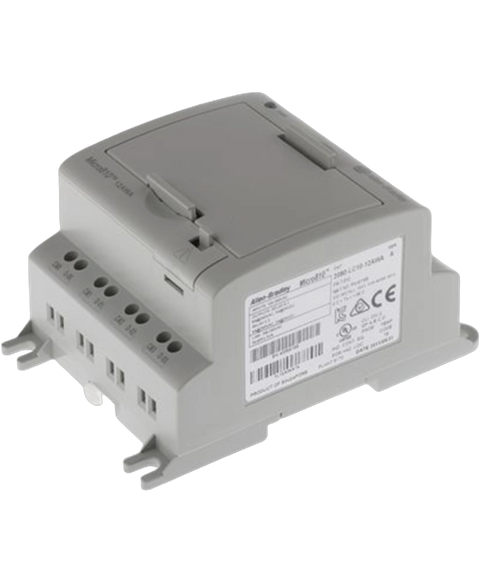

The Allen-Bradley,Rockwell Automation 2080-LC10-12AWA programmable logic controller or PLC is a 12-point programmable logic controller from the Allen-Bradley Micro 810 series. Its 12 I,O points are 4 relay outputs, 4 digital inputs, and 4 configurable inputs that can be digital or analog. The 2080-LC10-12AWA programmable logic controller has a nominal on-state voltage rating of 120,240 Volts AC and an on-state voltage range of 79 to 265 Volts AC at 47 to 63 Hertz. It has an IP 20 environmental protection rating and the North American Hazardous Location Approval rating. The 2080-LC10-12AWA programmable logic controller can support solid and stranded copper wire.
This Allen Bradley 2080-LC10-12AWA is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Cpu > Micro810 range and is referenced internally as PartLogic SKU PL27209275804.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Programmable Controller |
| Product Line | Micro 810 |
| Part Number | 2080-LC10-12AWA |
| UPC | 885630058047 |
| Weight | 2.25 lbs (1.02 kg) |
| Power | 120-240V AC |
| Number of I/O | 8 Input(4 digital, 4 analog/digital); 4 Output |
| Supply Voltage Range | 85-263V |
| Supply Frequency Range | 47-63 Hz |
| Voltage Range | 100-240V AC, 50/60 Hz |
| Input I/O Rating | 120-240V AC |
| On-state Voltage nom./min./max. | 120240V AC, 79V AC, 265V AC |
| Off-state Voltage max. | 40V AC |
| Off-state Current max. | 0.095 mA |
| Operating Frequency nom. | 50/60 Hz |
| Operating Frequency | 47-63 Hz |
| Brand | Allen Bradley |
