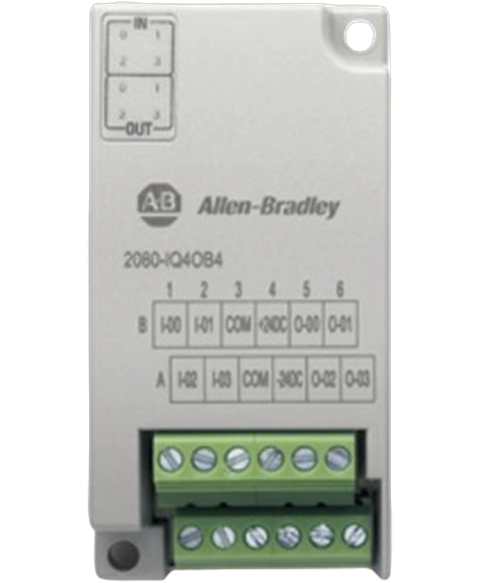

Allen Bradley 2080-IQ4OB4
The Allen-Bradley 2080-IQ4OB4 input and output module is a digital input and output module from the Micro 800 PLC series. It is a plug-in type of input and output module that is made to be plugged into a programmable logic controller or PLC to provide it with additional input and output points. The 2080-IQ4OB4 input and output module is approved for safe operation in hazardous locations in North America. This module has no built-in enclosure. The operating temperature for the 2080-IQ4OB4 input and output module is -4 to 149 degrees Fahrenheit and the storage temperature is -40 to 185 degrees Fahrenheit.
This Allen Bradley 2080-IQ4OB4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Combination > Micro800 range and is referenced internally as PartLogic SKU PL27205137336.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Digital Plug-in Module |
| Product Line | Micro 800 |
| Part Number | 2080-IQ4OB4 |
| UPC | 885630234939 |
| Weight | 0.06 lbs (0.03 kg) |
| DC On-state Voltage min./max. | 9.0/30V DC |
| DC On-state Current min. | 2.0 mA at 9V DC |
| DC On-state Current nom. | 3.0 mA at 24V DC |
| DC On-state Current max. | 5.0 mA |
| DC Off-state Voltage max. | 5V DC |
| DC Off-state Current max. | 1.5 mA |
| IEC Input Compatibility | Type 3 |
| AC On-state Voltage min./max. | 10.25V AC/30V AC |
| AC On-state Current min./max. | 2mA at 9V AC/ 5.0 mA |
| Enclosure Type Rating | None(open-style) |
| Sourcing Output Power Supply Voltage min./max. | 10.8V DC/30V DC |
| Sourcing Output On-state Voltage min./nom./max. | 10V DC/24V DC/30V DC |
| Sourcing Output On-state Current min./max. | 5.0mA at 10V DC/ 0.5 A |
| Brand | Allen Bradley |
