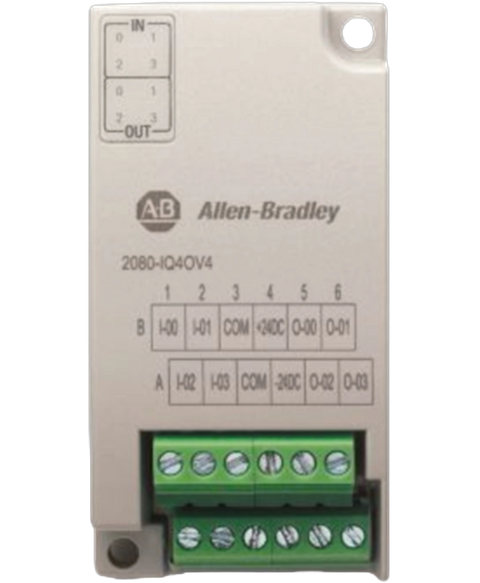

Allen Bradley 2080-IQ4
Digital input module, plug-in, 4 points, 12,24VDC, sink,source, iec3
This Allen Bradley 2080-IQ4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input > Micro800 range and is referenced internally as PartLogic SKU PL27199079511.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Series | Micro800 |
| Model number | 2080-IQ4 |
| Number of digital inputs | 4 |
| Input type | IEC Type 3, sink/source |
| Input voltage (DC) | 9–30 V DC on-state, ≤5 V DC off-state |
| Input current (DC) | 2 mA min @ 9 V, 3 mA nom @ 24 V, 5 mA max |
| Input voltage (AC) | 10.25–30 V AC on-state |
| Input current (AC) | 2 mA @ 9 V AC min, 5 mA max |
| Digital outputs configurable | False |
| Digital inputs configurable | False |
| Connection type | Screw terminals |
| Wire size | 0.2–2.5 mm² (24–12 AWG) copper, 90 °C insulation max |
| Status indicators | 4 yellow LEDs |
| Isolation voltage | 50 V continuous, type tested 60 s @ 720 V DC inputs to backplane |
| I/O isolation | None (basic insulation type) |
| Enclosure rating | Open-style |
| Operating temperature | -20 to 65 °C (-4 to 149 °F) |
| Relative humidity | 5–95% noncondensing |
| Product type | Digital plug-in module |
| UPC | 885630234892 |
| Weight | 0.13 lb (0.06 kg) |
