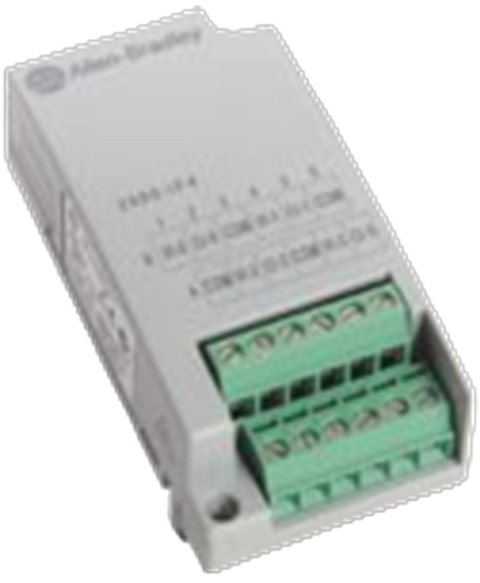

Allen Bradley 2080-IF4
This Micro 800 Programmable Logic Controller's specifications include 4-ch V,I Analog Input Unipolar 0-10V and is (non-isolated).
This Allen Bradley 2080-IF4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input > Micro800 range and is referenced internally as PartLogic SKU PL26801449300.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | 2080-IF4 |
| Module type | Micro800 analog input plug-in |
| Analog inputs | 4 channels, unipolar |
| Input signal types | Voltage 0–10 V DC, Current 0–20 mA |
| Resolution | 12 bit |
| Data range | 0 to 65535 |
| Channel-to-channel isolation | None |
| Group-to-bus isolation | None |
| Update time | 180 ms per enabled channel |
| Overall accuracy | ±1% FS @ 25 °C (voltage/current terminals) |
| Module error over temp | Voltage ±1.5%, Current ±2.0% (−20…65 °C) |
| Power consumption | <60 mA @ 3.3 V |
| Wire size | Solid 0.14–1.5 mm², Stranded 0.14–1.0 mm², 90 °C insulation max |
| Connection type | Screw connection |
| Recommended shielded cable length | 10 m max |
| Operating temperature | −20…65 °C (−4…149 °F) |
| Storage temperature | −40…85 °C (−40…185 °F) |
| Relative humidity | 5…95% noncondensing |
| Operating altitude | 2000 m |
| Temperature code | T4 (North America) |
| Emissions | CISPR 11 Class A |
| ESD immunity | IEC 61000-4-2, 6 kV contact, 8 kV air |
| EFT/B immunity | IEC 61000-4-4, ±2 kV @ 5 kHz on shielded ports |
| Conducted RF immunity | IEC 61000-4-6, 10 V rms 150 kHz…80 MHz |
| Surge immunity | IEC 61000-4-5, ±2 kV line-earth (CM) on shielded ports |
| Radiated RF immunity | IEC 61000-4-3, 10 V/m 80…2000 MHz and 2000…2700 MHz |
| I/O status indication | None |
