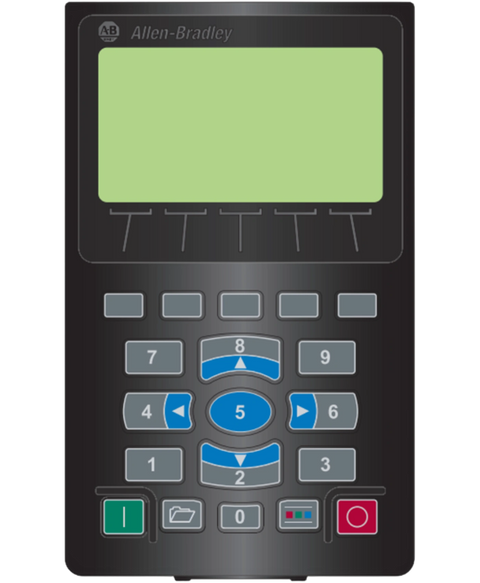

Allen Bradley 20-HIM-A6
The 20-HIM-A6 Human Interface Module is a critical component of the Allen Bradley PowerFlex 700 series, designed for interfacing with drives. This module features an LCD display coupled with a full numeric keypad, which allows for straightforward input and monitoring tasks. Its current consumption is rated at 140 mA, and it utilizes a Drive Peripheral Interface (DPI) protocol for communication.
This Allen Bradley 20-HIM-A6 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Powerflex > Keypad range and is referenced internally as PartLogic SKU PL26801443599.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Human Interface Module (HIM) |
| Product Line | PowerFlex 700 |
| Part Number | 20-HIM-A6 |
| UPC | 820919959967 |
| Weight | 0.25 lbs (0.11 kg) |
| Display Type | LCD with keypad |
| Current Consumption | 140 mA |
| Protocol | Drive Peripheral Interface (DPI) |
| Shock Resistance | 30 G, 11 ms (±1 ms) pulse |
| Protection Rating | NEMA 1 (when mounted) |
| Mounting Style | Integrated or door/panel mount |
| Operating Temperature | 0–50 °C (32–122 °F) |
| Data Rate | 125 / 500 Kbps |
| Vibration Resistance | 2.5 G @ 5 Hz–2 kHz |
| Keypad Type | Full numeric keypad |
| Communication Port | 1× DPI connector |
| Storage Temperature | –40–85 °C (–40–185 °F) |
| Supply Voltage | 12 VDC (from host drive) |
| Relative Humidity | 5–95%, non-condensing |
| Brand | Allen Bradley |
