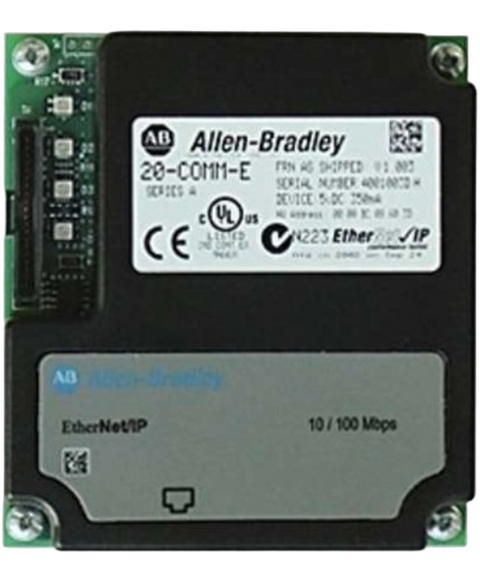

Allen Bradley 20-COMM-E
The Allen-Bradley 20-COMM-E is an Ethernet I,P communication adapter that is compatible for use with PowerFlex 70 and 700 series drives. This adapter directly attached to the drive’s communication adapter slot and provides EtherNet I,P connectivity with data communication rates of 10 Mbps Full Duplex, 10 Mbps Half Duplex, 100 Mbps Full Duplex, and 100 Mbps Half Duplex.
This Allen Bradley 20-COMM-E is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Powerflex 70 range and is referenced internally as PartLogic SKU PL26805672705.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | PowerFlex 70 |
| Part Number | 20-COMM-E |
| UPC | 820919019623 |
| Weight | 0.44 lbs (0.20 kg) |
| Description | Ethernet I/P communication adapter |
| Communication Port | One (1) RJ45 |
| Communication Protocol | Ethernet I/P |
| Data Rate | 10 Mbps Full Duplex, 10 Mbps Half Duplex, 100 Mbps Full Duplex, and 100 Mbps Half Duplex. |
| No. of TCP connections | 30 TCP connections |
| RPI | 5 ms minimum |
| Packet Rate | Up to 400 total I/O packets per second (200 in and 200 out) |
| Drive Power consumption | 350 mA at 5V DC supplied by the host (drive or DPI External Comms Kit) |
| Operating Temperature | -10…50 °C (14…122 °F) |
| Storage | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% non-condensing |
| Regulatory Compliance | UL508C, CAN / CSA C22.2 No. 14-M91, EN50178 and EN61800-3, EN61800-3 specifications |
| Voltage | 400V AC |
| Ph | 3 |
| Amps | 1.3 |
| kW(Hp) | 0.37 (0.5) |
| Frame | A |
| Enclosure | Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module | Blank Cover |
| Feedback | No Feedback - Enhanced Control |
| Brand | Allen Bradley |
