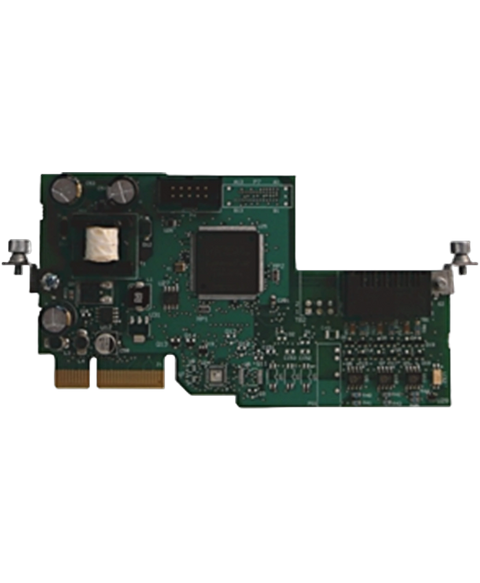

Allen Bradley 20-750-ENC-1
The 20-750-ENC-1 by Allen Bradley is a feedback and control module designed specifically for the PowerFlex 755 series. This option module provides incremental encoder feedback input and is compatible with multiple drive models, including PowerFlex-753, 755, 755TL, and 755TR.
This Allen Bradley 20-750-ENC-1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Powerflex 750 range and is referenced internally as PartLogic SKU PL27209890687.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Feedback / Control Module |
| Product Line | PowerFlex 755 |
| Part Number | 20-750-ENC-1 |
| UPC | 884951062504 |
| Weight | 5.00 lbs (2.27 kg) |
| Product Description | Incremental Encoder Option Module |
| Compatible Drives | PowerFlex-753, 755, 755TL, 755TR |
| Function | Provides incremental encoder feedback input |
| Input Voltage Range | 5 to 15 V DC (sourcing) |
| Current Consumption | 10 mA (approx.) |
| Input Logic Levels | Min high: 3.5 V ; Max low: 0.4 V |
| Maximum Cable Length | 30 m at 5 V ; 183 m at 12 V |
| Maximum Input Frequency | 250 kHz |
| Operating Temperature | -40 to 70 °C |
| Humidity Tolerance | 5 to 95 % RH, non-condensing |
| Environment | Installed inside drive / control cabinet |
| Brand | Allen Bradley |
